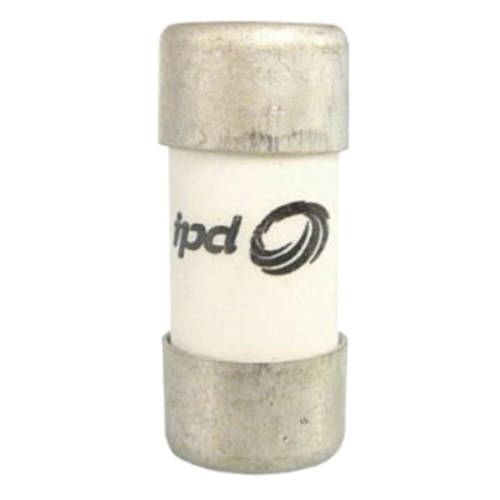

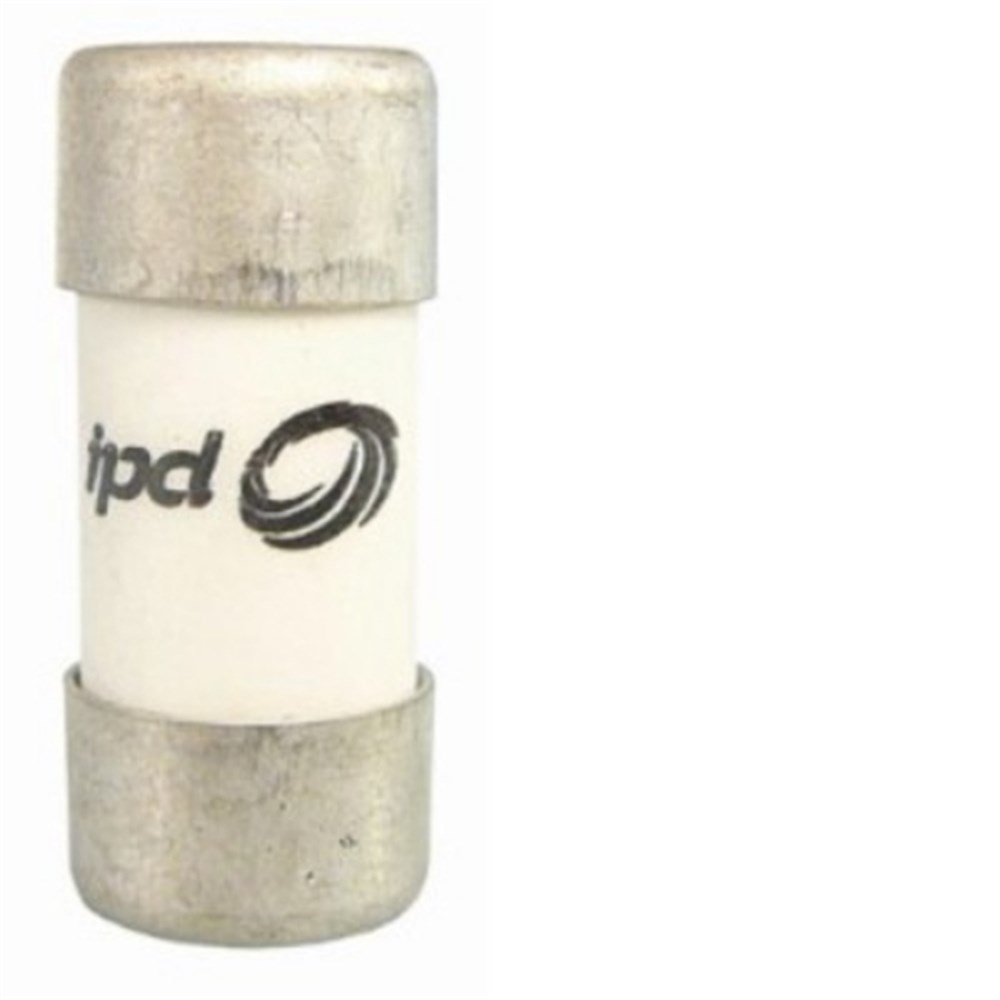

IPD LC8 Unit Fuse-Link 8A 240VAC Ferrule Fuse Cylindrical 26mm L x 10.3mm D 16.5kA gG

Product Code: LC8

  • Rated for 8 A, suitable for various applications
  • Complies with IEC 60269-3/BS 88-3 standards
  • Supports up to 240 VAC systems
  • High breaking capacity of 16.5 kA
  • Compact cylindrical body design
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
IPD
Application
Consumer fuse link protection

Electrical

Utilization Category
gG
Breaking Capacity
16.5 kA
Rated Current (In)
8 A
Rated Voltage (Ur)
240 V AC

Mechanical

Body Style
Cylindrical
Mounting
Fuse holder
Size Code
26 mm L x 10.3 mm D
Connection/Termination
Clip-in ferrule

Dimensions & Physical Data

Length
26 mm
Width
Ø 10.3 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-3 / BS 88-3; BS 1361

Documents

IPD Product Catalogue V17
