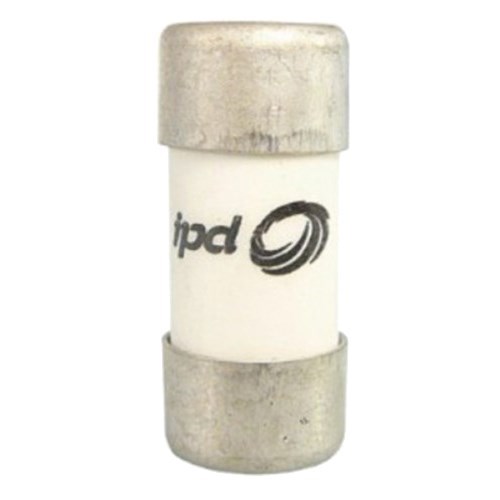

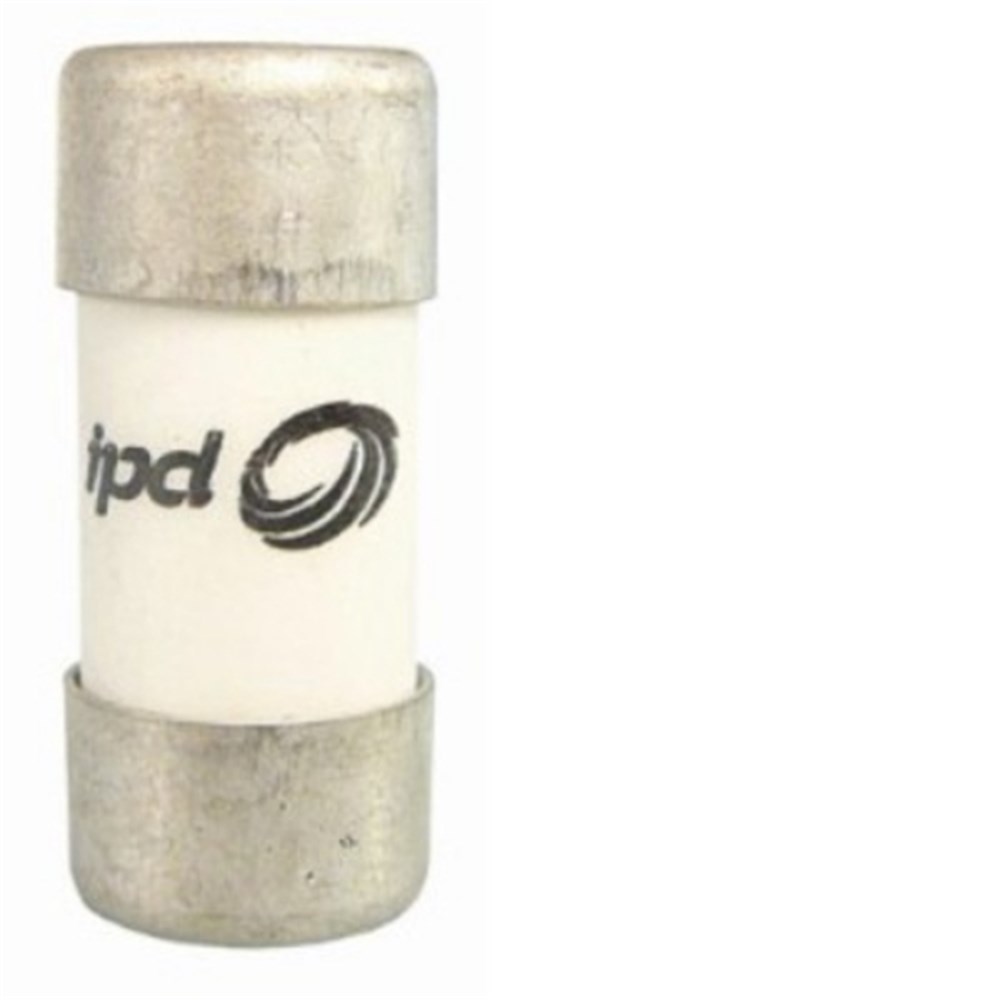

IPD LC2 Unit Fuse-Link 2A 240VAC Ferrule Fuse Cylindrical 26mm L x 10.3mm D 16.5kA gG

Product Code: LC2

  • Suitable for 240 VAC systems
  • Cylindrical body, compact design
  • High breaking capacity of 16.5 kA
  • Complies with IEC 60269-3/BS 88-3 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Consumer Unit Fuse - Link
Brand
IPD
Application
Domestic / light commercial circuit protection

Electrical

Suitable For
Consumer unit fuse holders
Utilization Category
gG
Breaking Capacity
16.5 kA AC
Rated Current (In)
2 A
Rated Voltage (Ur)
240 V AC
Speed Class
gG / general purpose

Mechanical

Body Style
Cylindrical
Indicators
Without indicator
Material
Ceramic body, metal end caps
Mounting
Ferrule
Connection/Termination
Ferrule end caps

Dimensions & Physical Data

Length
26 mm
Width
Ø 10.3 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-3 / BS 88-3; BS 1361
