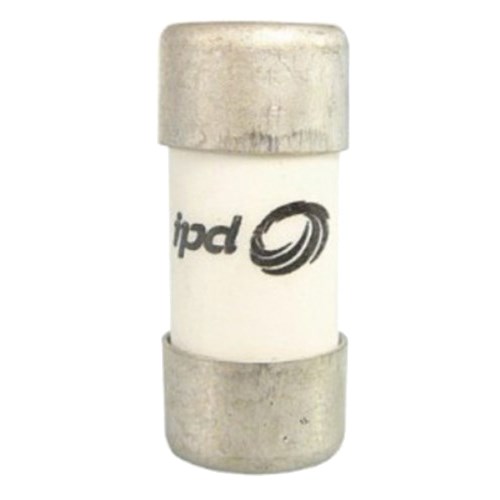

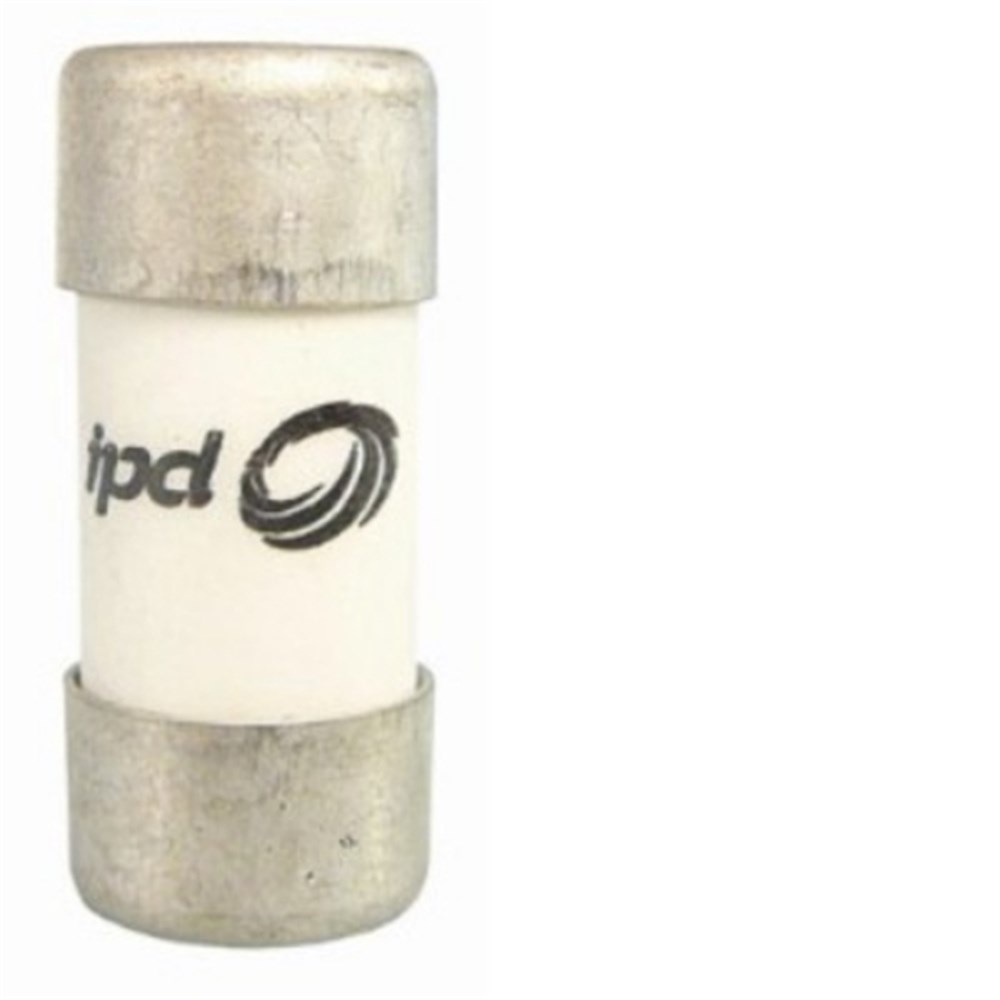

IPD LC16 Unit Fuse-Link 16A 240VAC Ferrule Fuse Cylindrical 26mm L x 10.3mm D 16.5kA gG

Product Code: LC16

  • 16 A rated current for reliable performance
  • Meets IEC 60269-3/BS 88-3, BS 1361 standards
  • Operates at 240 VAC voltage
  • Compact size: 26 mm length, 10.3 mm diameter
  • High breaking capacity of 16.5 kA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Consumer Unit Fuse - Link
Brand
IPD
Application
Domestic / light commercial circuit protection

Electrical

Suitable For
Consumer unit fuse holders
Utilization Category
gG
Breaking Capacity
16.5kA AC
Rated Current (In)
16A
Rated Voltage (Ur)
240V AC
Speed Class
gG / general purpose

Mechanical

Body Style
Cylindrical
Indicators
Without indicator
Material
Ceramic body, metal end caps
Mounting
Ferrule
Connection/Termination
Ferrule end caps

Dimensions & Physical Data

Length
26mm
Width
Ø 10.3mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-3 / BS 88-3; BS 1361

Documents

IPD Product Catalogue V17
