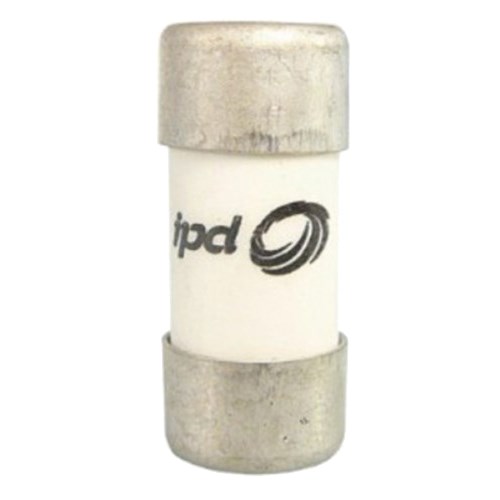

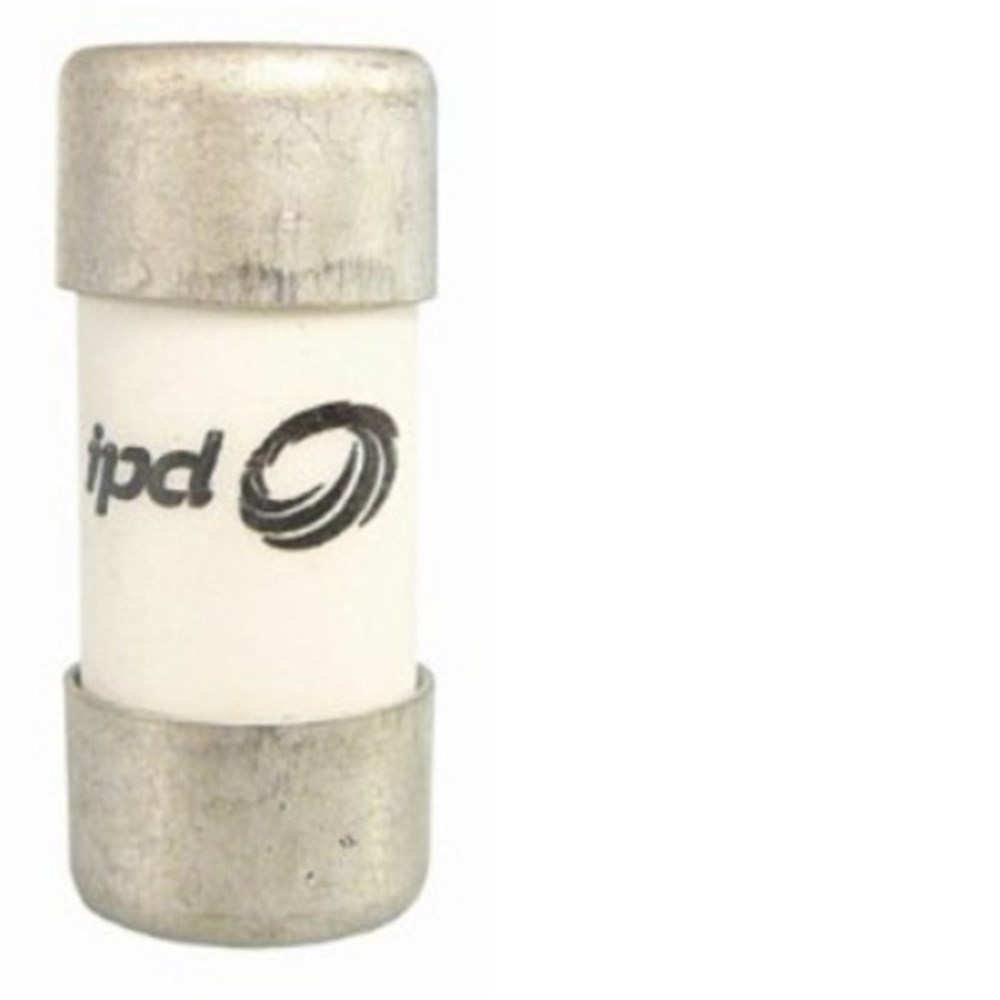

IPD LC10 Unit Fuse-Link 10A 240VAC Ferrule Fuse Cylindrical 26mm L x 10.3mm D 16.5kA gG

Product Code: LC10

  • 10 A rated current for reliable protection
  • Meets IEC 60269-3/BS 88-3, BS 1361 standards
  • Supports up to 240 VAC voltage
  • Compact size: 26 mm L x 10.3 mm D
  • High breaking capacity of 16.5 kA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
IPD
Application
Protection of cables, motors, LV networks, industrial distribution circuits

Electrical

Utilization Category
gG
Breaking Capacity
16.5 kA
Rated Current (In)
10 A
Rated Voltage (Ur)
240 V AC

Mechanical

Body Style
Cylindrical
Material
Ceramic body

Dimensions & Physical Data

Size
10.3 × 26 mm

Documents

IPD Product Catalogue V17
