Products

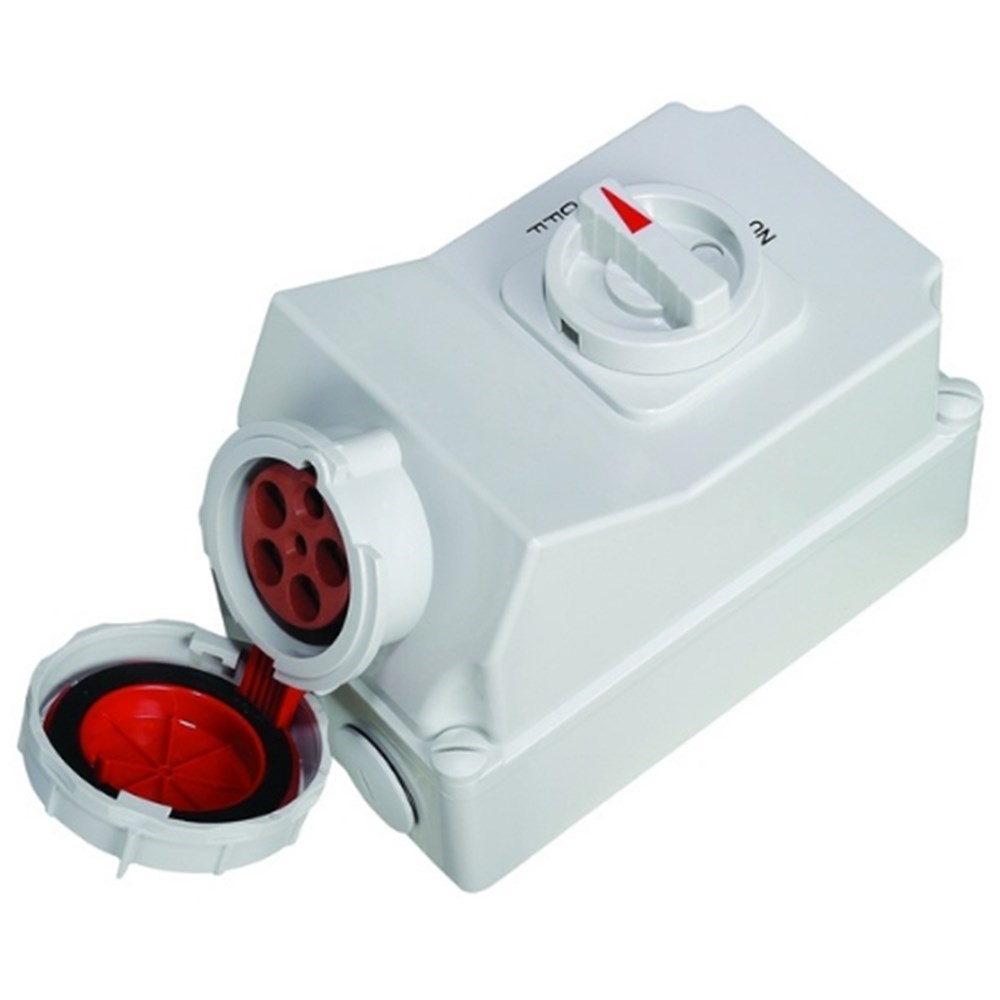

IPD EU67SS563 Switched Socket with Interlock 5 63A 400VAC/DC IP67 Polycarbonate PBT

Product Code: EU67SS563

  • 63A, 400V socket for high power applications
  • IP67 rating ensures dust and water protection
  • Durable polycarbonate and PBT construction
  • Earthing pin positioned at 6h
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switched Socket
Brand
IPD

Electrical

Rated Current (In)
63A
Rated Voltage (Ur)
400 VAC/VDC

Mechanical

Cable Cross Section
6-25 sq-mm
Colour
Red
Earthing Pin Position
6h
Material
Polycarbonate, PBT
No. of Pins
5

Dimensions & Physical Data

Depth
196mm
Height
300mm
Weight
1.9kg
Width
163mm

Environmental

IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
IEC 60309-2

Documents

IPD Product Catalogue V17
