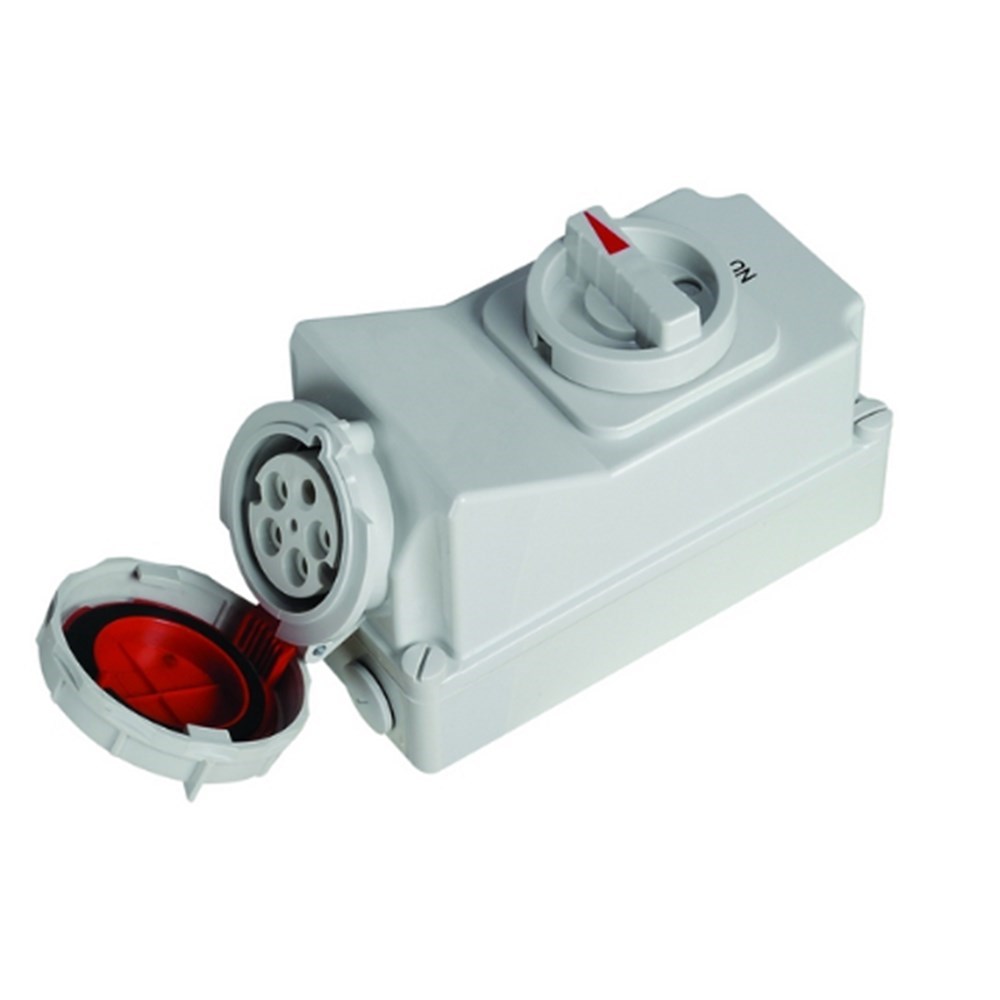

IPD EU67SS532 Switched Socket with Interlock 5 32A 400VAC/DC IP67 Polycarbonate PBT

Product Code: EU67SS532

  • 32A socket for high current applications
  • Supports 400V AC/DC systems
  • IP67 rated for water and dust protection
  • Durable polycarbonate, PBT construction
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switched Socket
Brand
IPD

Electrical

Rated Current (In)
32A
Rated Voltage (Ur)
400 VAC/VDC

Mechanical

Cable Cross Section
2.5-10 sq-mm
Colour
Red
Earthing Pin Position
6h
Material
Polycarbonate, PBT
No. of Pins
5

Dimensions & Physical Data

Depth
163mm
Height
274mm
Weight
1.3kg
Width
118mm

Environmental

IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
IEC 60309-2

Documents

IPD Product Catalogue V17
