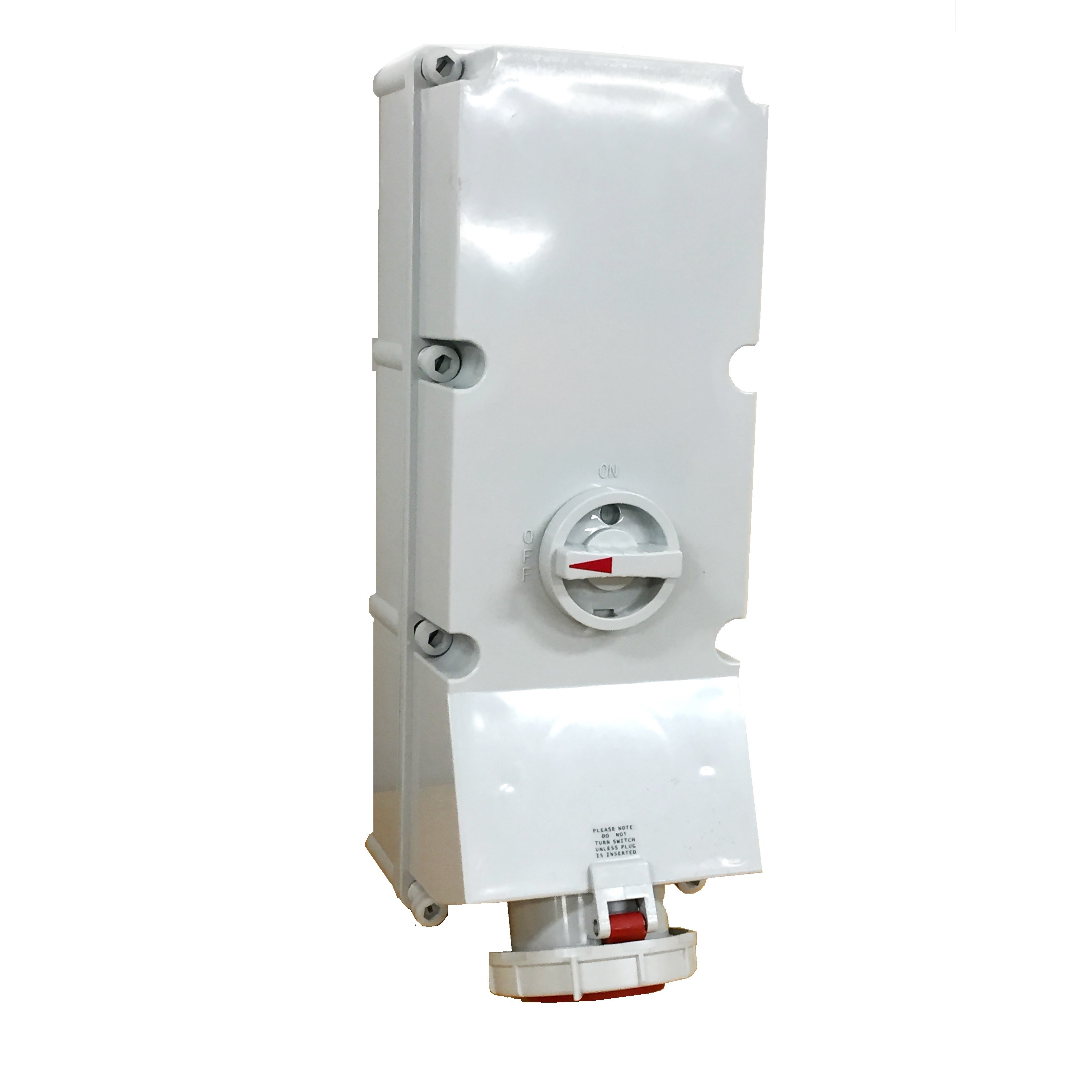

IPD EU67SS5125N Switched Socket 5 125A 400V IP67 Red Polycarbonate PBT

Product Code: EU67SS5125N

  • High capacity with 125 A, 400 V rating
  • Durable polycarbonate & PBT construction
  • IP67 protection for harsh environments
  • Compliant with IEC 309 standards
  • Compact size: 315x500x170 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switched Socket
Brand
IPD

Electrical

No. of Phases
3
Rated Current (In)
125A
Rated Voltage (Ur)
400V

Mechanical

Cable Cross Section
50 sq-mm
Colour
Red
Earthing Pin Position
6h
Gland Entries
170 x 120 mm (Top)
Material
Polycarbonate, PBT
No. of Pins
5

Dimensions & Physical Data

Depth
170mm
Height
500mm
Weight
6.2kg
Width
315mm

Environmental

IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
IEC 60309-2

Documents

IPD Product Catalogue V17
