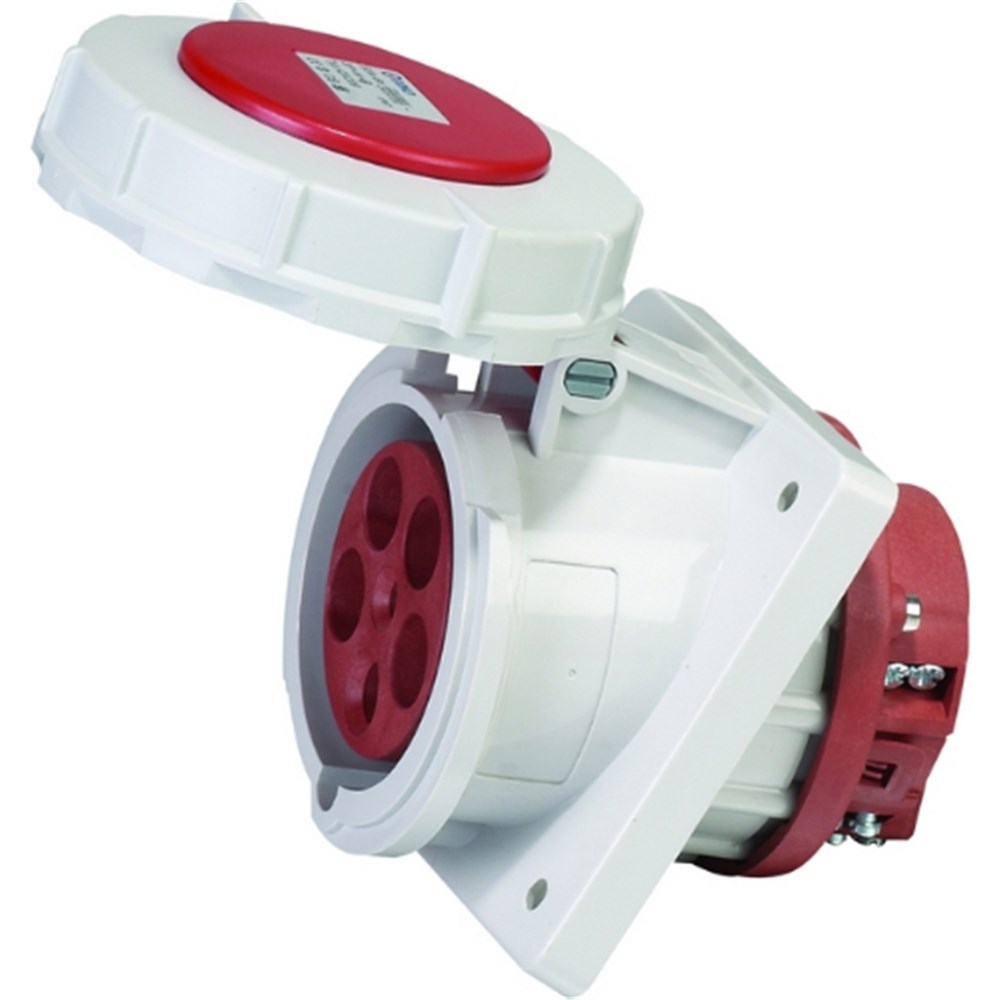

IPD EU67SA563 Angle Panel Mount Panel Mount 5 63A 400VAC/DC IP67

Product Code: EU67SA563

  • High current capacity of 63 A
  • Suitable for 400 VAC/VDC applications
  • Robust IP67 protection rating
  • Panel mounting design
  • Earthing pin at 6h position
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Panel Mounted Socket Angled
Brand
IPD
Series
EU
Application
Industrial power distribution, Construction sites, Manufacturing plants, Outdoor electrical installations

Electrical

Rated Current (In)
63A
Rated Voltage (Ur)
400V
No. of Switching Poles
4
With Neutral Conductor
Yes

Mechanical

Colour
Red
No. of Pins
5 Pin
Max. Cable Size
16 mm²

Dimensions & Physical Data

Weight
0.653kg

Environmental

IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
EN/IEC 60309-2

Documents

IPD Product Catalogue V17
