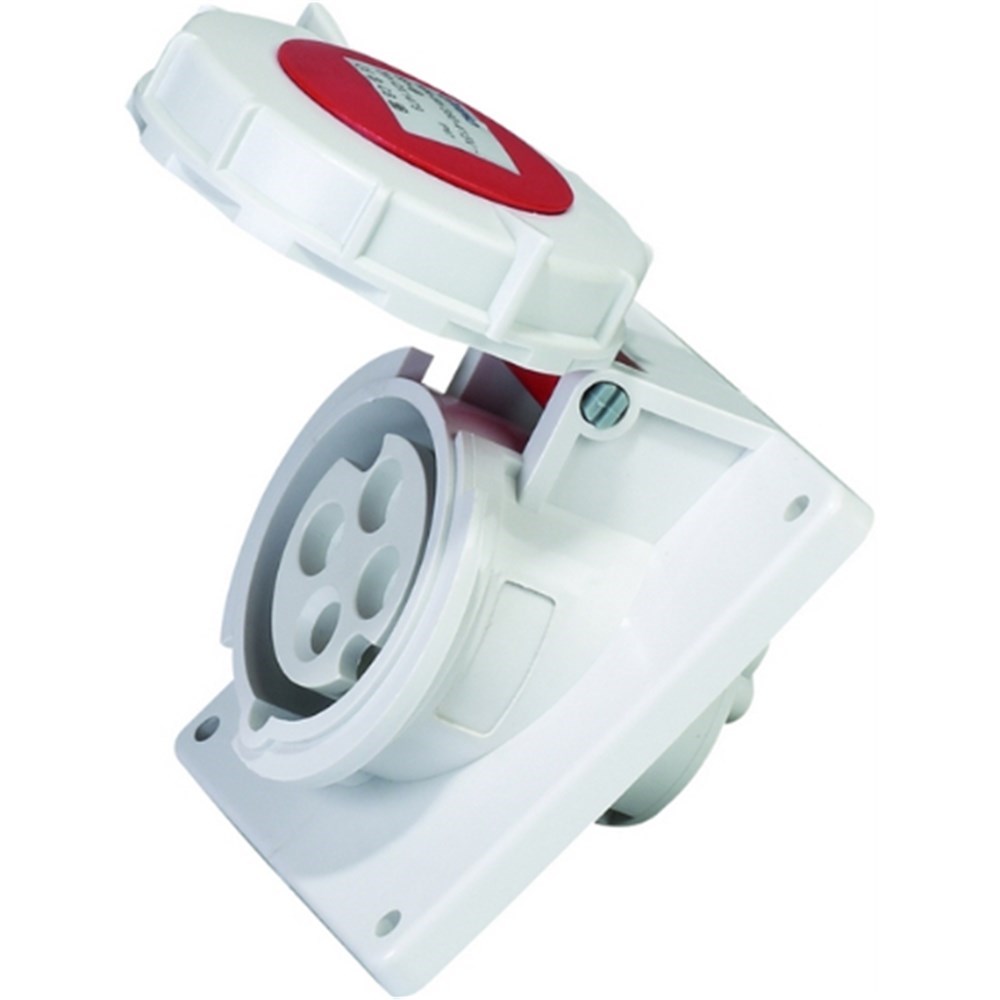

IPD EU67SA432 Angle Panel Mount Panel Mount 4 32A 400VAC/DC IP67

Product Code: EU67SA432

  • 32A rated current for robust applications
  • Supports 400V AC/DC power systems
  • IP67 rating ensures dust and water protection
  • Easy panel mounting for quick installation
  • Earthing pin positioned at 6h
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Panel Mounted Socket Angled
Brand
IPD
Series
EU
Application
Industrial power distribution, Construction sites, Manufacturing plants, Outdoor electrical installations

Electrical

Rated Current (In)
32A
Rated Voltage (Ur)
400V
No. of Switching Poles
3

Mechanical

Colour
Red
No. of Pins
4 Pin
Max. Cable Size
6 mm²

Dimensions & Physical Data

Weight
0.3kg

Environmental

IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
EN/IEC 60309-2

Documents

IPD Product Catalogue V17
