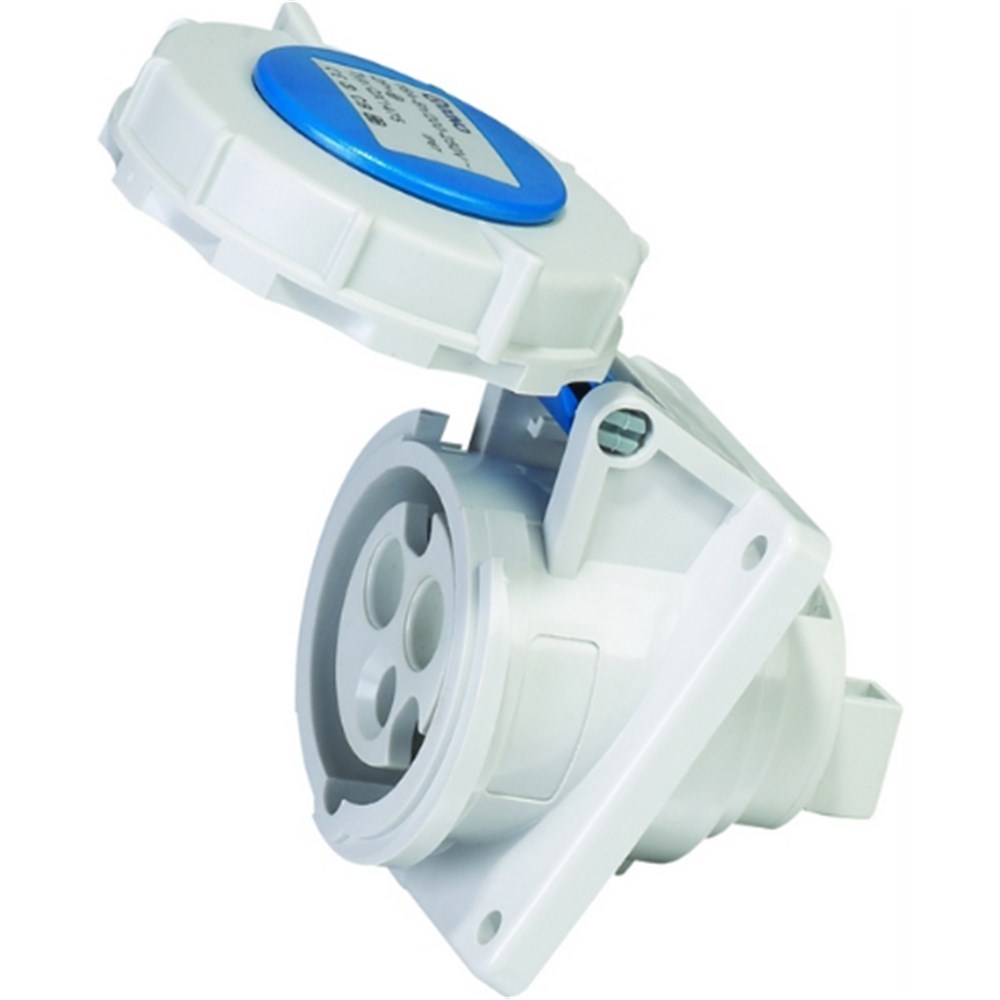

IPD EU67SA316 Angle Panel Mount Panel Mount 3 16A 230VAC/DC IP67

Product Code: EU67SA316

  • 16 A rated current for reliable performance
  • Supports 230 VAC/VDC voltage
  • IP67 protection for harsh environments
  • Panel mounting for secure installation
  • Earthing pin positioned at 6h
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Panel Mounted Socket Angled
Brand
IPD
Series
EU
Application
Industrial power distribution, Construction sites, Manufacturing plants, Outdoor electrical installations

Electrical

Rated Current (In)
16A
Rated Voltage (Ur)
230V
No. of Switching Poles
2
With Neutral Conductor
Yes

Mechanical

Colour
Blue
No. of Pins
3 Pin
Max. Cable Size
2.5 mm²

Dimensions & Physical Data

Height
73.5mm
Weight
0.151kg
Width
64mm

Environmental

IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
EN/IEC 60309-2

Documents

IPD Product Catalogue V17
