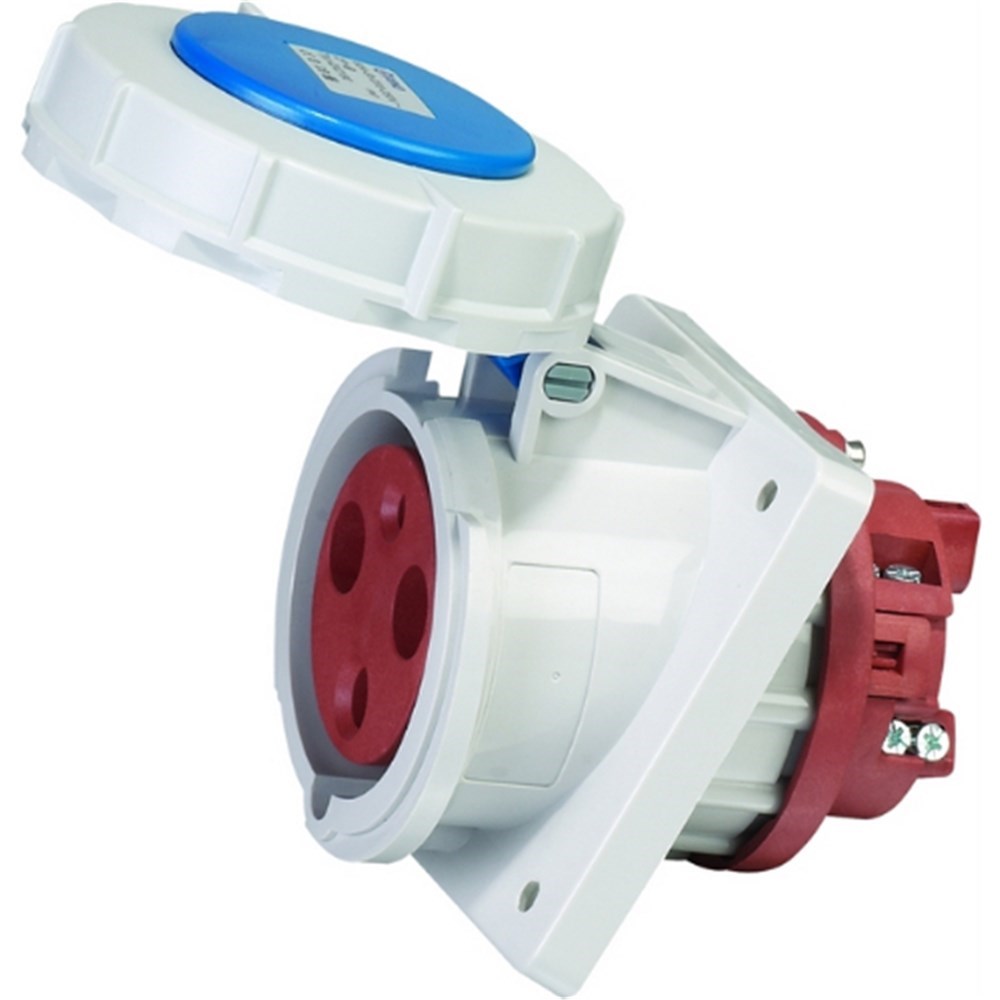

IPD EU67SA3125 Angle Panel Mount Panel Mount 3 125A 230VAC/DC IP67

Product Code: EU67SA3125

  • Panel mount socket for secure installation
  • High current capacity of 125 A
  • Suitable for 230 VAC/VDC applications
  • IP67 rated for dust and water protection
  • Earthing pin positioned at 6h
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Panel Mounted Socket Angled
Brand
IPD
Series
EU
Application
Industrial power distribution, Construction sites, Manufacturing plants, Outdoor electrical installations

Electrical

Rated Current (In)
125A
Rated Voltage (Ur)
230V
No. of Switching Poles
2
With Neutral Conductor
Yes

Mechanical

Colour
Blue
No. of Pins
3 Pin
Max. Cable Size
35 mm²

Dimensions & Physical Data

Height
114mm
Weight
0.939kg
Width
110mm

Environmental

IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
EN/IEC 60309-2

Documents

IPD Product Catalogue V17
