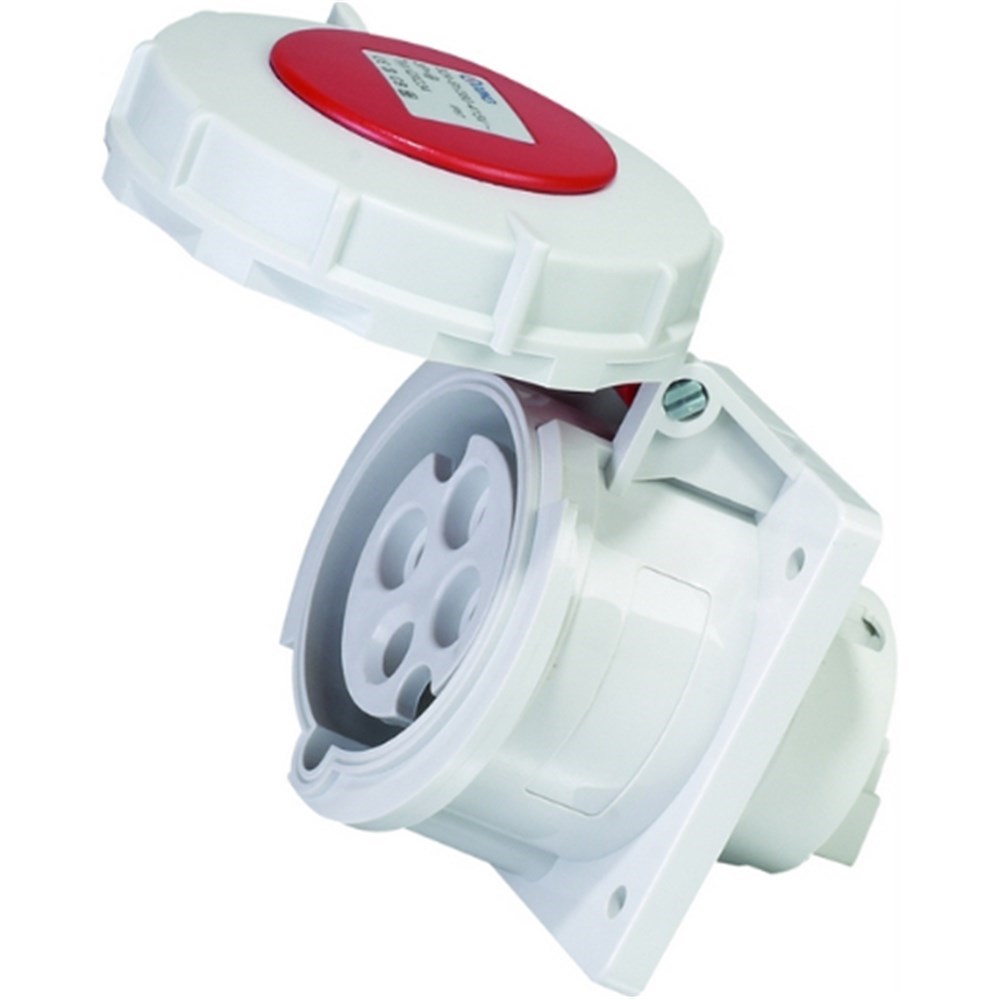

IPD EU67S532 Straight Panel Mounted Panel Mount 5 32A 400VAC/DC IP67

Product Code: EU67S532

  • 32A rated for high power applications
  • Suitable for 400 VAC/VDC systems
  • IP67 protection against dust and water
  • Panel mounting for secure installation
  • Earthing pin positioned at 6h
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Panel Mounted Socket Straight
Brand
IPD
Series
EU
Application
Industrial power distribution, Construction sites, Manufacturing plants, Outdoor electrical installations

Electrical

Rated Current (In)
32A
Rated Voltage (Ur)
400V
No. of Switching Poles
4
With Neutral Conductor
Yes

Mechanical

Colour
Red
No. of Pins
5 Pin
Max. Cable Size
6 mm²

Dimensions & Physical Data

Weight
0.306kg

Environmental

IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
EN/IEC 60309-2

Documents

IPD Product Catalogue V17
