Products

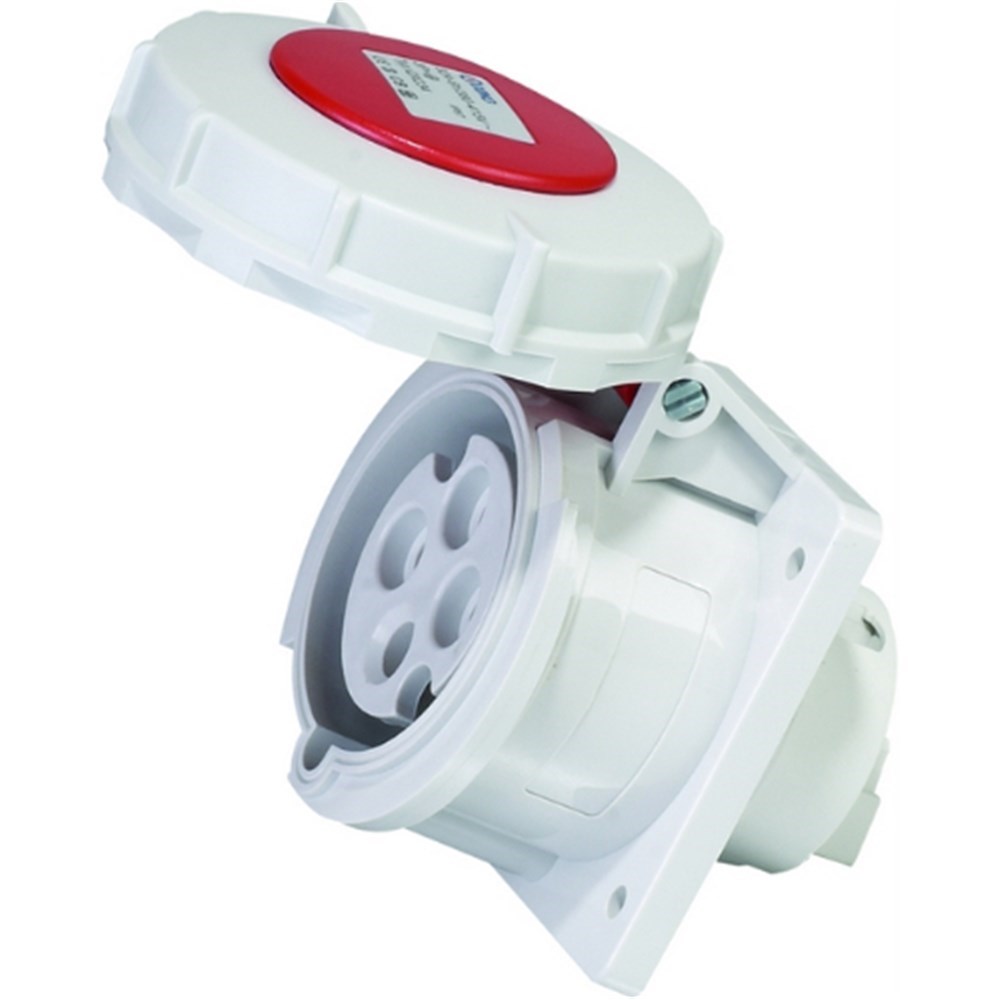

IPD EU67S516 Straight Panel Mounted Panel Mount 5 16A 400VAC/DC IP67

Product Code: EU67S516

  • 16 A current capacity
  • Supports 400 VAC/VDC
  • IP67 rated for protection
  • Panel mounting design
  • Earthing pin at 6h position
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Panel Mounted Socket Straight
Brand
IPD
Series
EU
Application
Industrial power distribution, Construction sites, Manufacturing plants, Outdoor electrical installations

Electrical

Rated Current (In)
16A
Rated Voltage (Ur)
400V
No. of Switching Poles
4
With Neutral Conductor
Yes

Mechanical

Colour
Red
No. of Pins
5 Pin
Max. Cable Size
2.5 mm²

Dimensions & Physical Data

Weight
0.223kg

Environmental

IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
EN/IEC 60309-2
