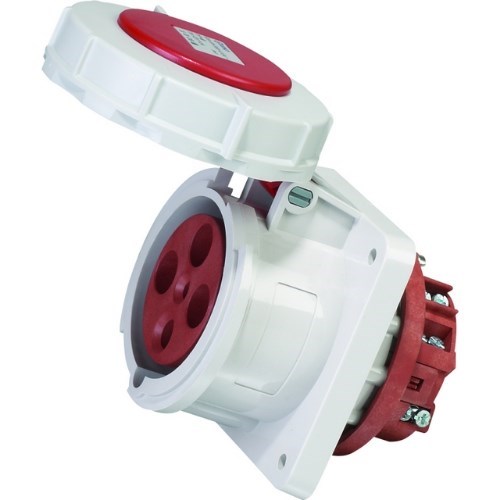

IPD EU67S5125 Straight Panel Mounted Panel Mount 5 125A 400VAC/DC IP67

Product Code: EU67S5125

  • High current capacity: 125 A
  • Dual voltage compatibility: 400 VAC/VDC
  • Robust IP67 protection rating
  • Easy panel mounting design
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Panel Mounted Socket Straight
Brand
IPD
Series
EU
Application
Industrial power distribution, Construction sites, Manufacturing plants, Outdoor electrical installations

Electrical

Rated Current (In)
125A
Rated Voltage (Ur)
400V
No. of Switching Poles
4
With Neutral Conductor
Yes

Mechanical

Colour
Red
No. of Pins
5 Pin
Max. Cable Size
35 mm²

Dimensions & Physical Data

Weight
1.324kg

Environmental

IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
EN/IEC 60309-2
