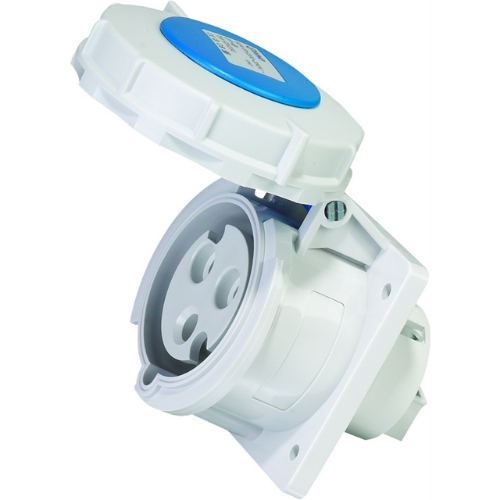

IPD EU67S332 Straight Panel Mounted Panel Mount 3 32A 230VAC/DC IP67

Product Code: EU67S332

  • 32A rated current for high power demand
  • Suitable for 230V AC/DC applications
  • IP67 protection for harsh environments
  • Panel mount design for secure installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Panel Mounted Socket Straight
Brand
IPD
Series
EU
Application
Industrial power distribution, Construction sites, Manufacturing plants, Outdoor electrical installations

Electrical

Rated Current (In)
32A
Rated Voltage (Ur)
230V
No. of Switching Poles
2
With Neutral Conductor
Yes

Mechanical

Colour
Blue
No. of Pins
3 Pin
Max. Cable Size
6 mm²

Dimensions & Physical Data

Depth
108mm
Weight
0.265kg
Width
103mm (dia.)

Environmental

IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
EN/IEC 60309-2

Documents

IPD Product Catalogue V17
