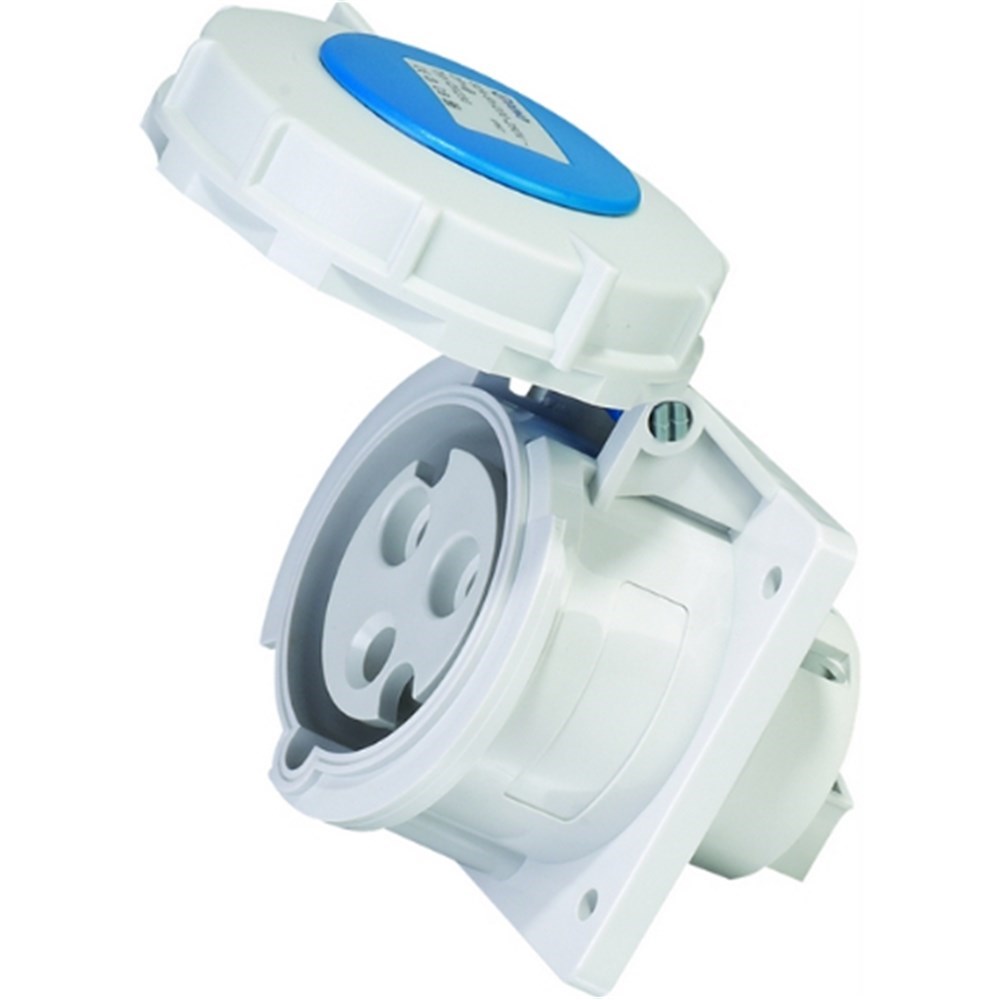

IPD EU67S316 Straight Panel Mounted Panel Mount 3 16A 230VAC/DC IP67

Product Code: EU67S316

  • Suitable for 230V AC/DC applications
  • High protection with IP67 rating
  • Panel mount installation
  • Supports up to 16A current
  • Earthing pin at 6h position
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Panel Mounted Socket Straight
Brand
IPD
Series
EU
Application
Industrial power distribution, Construction sites, Manufacturing plants, Outdoor electrical installations

Electrical

Rated Current (In)
16A
Rated Voltage (Ur)
230V
No. of Switching Poles
2
With Neutral Conductor
Yes

Mechanical

Colour
Blue
No. of Pins
3 Pin
Max. Cable Size
2.5 mm²

Dimensions & Physical Data

Depth
85mm
Weight
0.16kg
Width
78mm (dia.)

Environmental

IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
EN/IEC 60309-2
