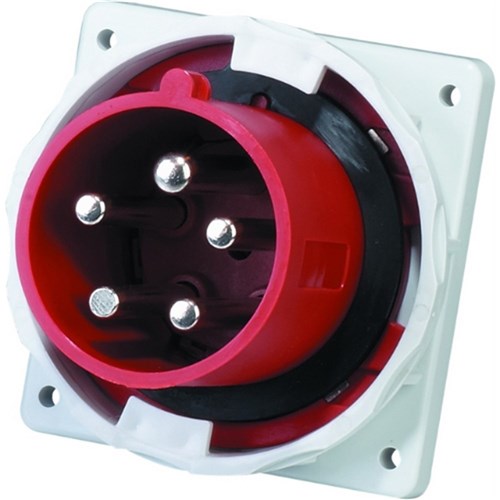

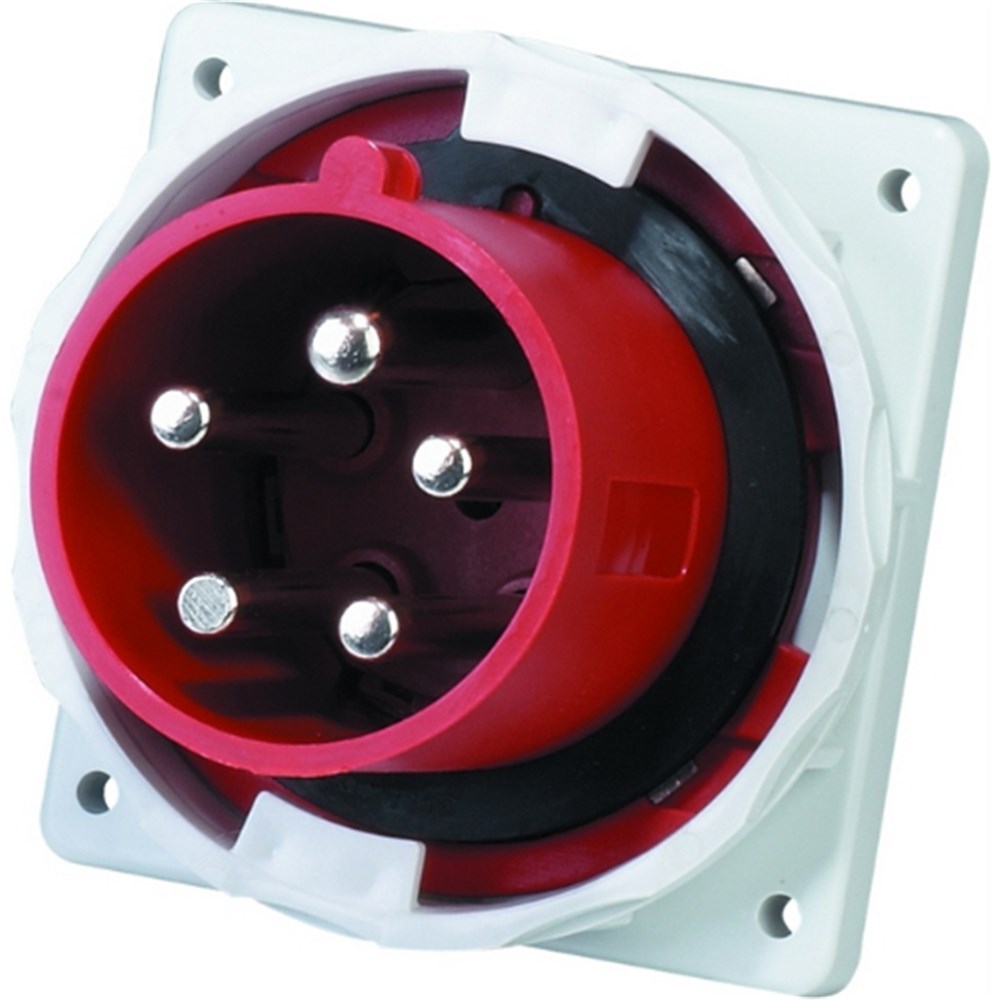

IPD EU67PP5125 Straight Panel Mounted Panel Mount 5 125A 400VAC/DC IP67

Product Code: EU67PP5125

  • Appliance inlet with 125 A rating
  • Supports 400 VAC/VDC voltage
  • IP67 protection for harsh environments
  • Panel mounting design
  • Earthing pin at 6h position
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Panel Mounted Appliance Inlet
Brand
IPD
Series
EU
Application
Industrial power distribution, Construction sites, Manufacturing plants, Outdoor electrical installations

Electrical

Rated Current (In)
125A
Rated Voltage (Ur)
400V
No. of Switching Poles
4
With Neutral Conductor
Yes

Mechanical

Colour
Red
No. of Pins
5 Pin
Max. Cable Size
35 mm²

Dimensions & Physical Data

Weight
1.132kg

Environmental

IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
EN/IEC 60309-2

Documents

IPD Product Catalogue V17
