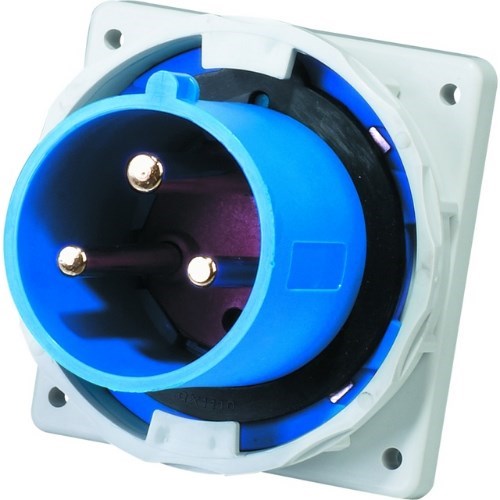

IPD EU67PP363 Straight Panel Mounted Panel Mount 3 63A 230VAC/DC IP67

Product Code: EU67PP363

  • Rated for 63 A at 230 VAC/VDC
  • IP67 protection ensures durability
  • Panel mounting design
  • Earthing pin positioned at 6h
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Panel Mounted Appliance Inlet
Brand
IPD
Series
EU
Application
Industrial power distribution, Construction sites, Manufacturing plants, Outdoor electrical installations

Electrical

Rated Current (In)
63A
Rated Voltage (Ur)
230V
No. of Switching Poles
2
With Neutral Conductor
Yes

Mechanical

Colour
Blue
No. of Pins
3 Pin
Max. Cable Size
16 mm²

Dimensions & Physical Data

Depth
86mm
Height
110mm
Weight
0.483kg
Width
106mm

Environmental

IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
EN/IEC 60309-2

Documents

IPD Product Catalogue V17
