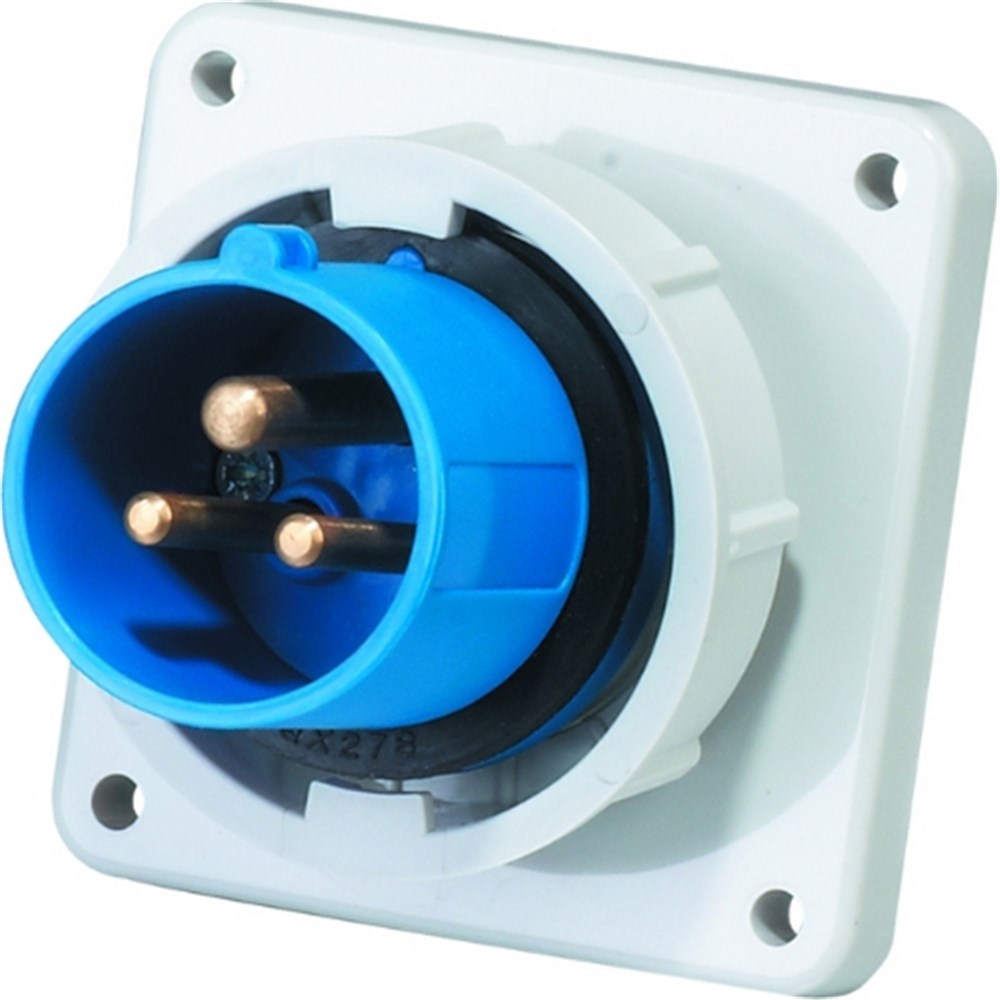

IPD EU67PP332 Straight Panel Mounted Panel Mount 3 32A 230VAC/DC IP67

Product Code: EU67PP332

  • 32 A rated current for robust performance
  • Suitable for 230 VAC/VDC applications
  • IP67 protection ensures water/dust resistance
  • Panel mounting for easy installation
  • Earthing pin at 6h position for safety
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Panel Mounted Appliance Inlet
Brand
IPD
Series
EU
Application
Industrial power distribution, Construction sites, Manufacturing plants, Outdoor electrical installations

Electrical

Rated Current (In)
32A
Rated Voltage (Ur)
230V
No. of Switching Poles
2
With Neutral Conductor
Yes

Mechanical

Colour
Blue
No. of Pins
3 Pin
Max. Cable Size
6 mm²

Dimensions & Physical Data

Depth
90mm
Height
85.7mm
Weight
0.228kg
Width
85.7mm

Environmental

IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
EN/IEC 60309-2

Documents

IPD Product Catalogue V17
