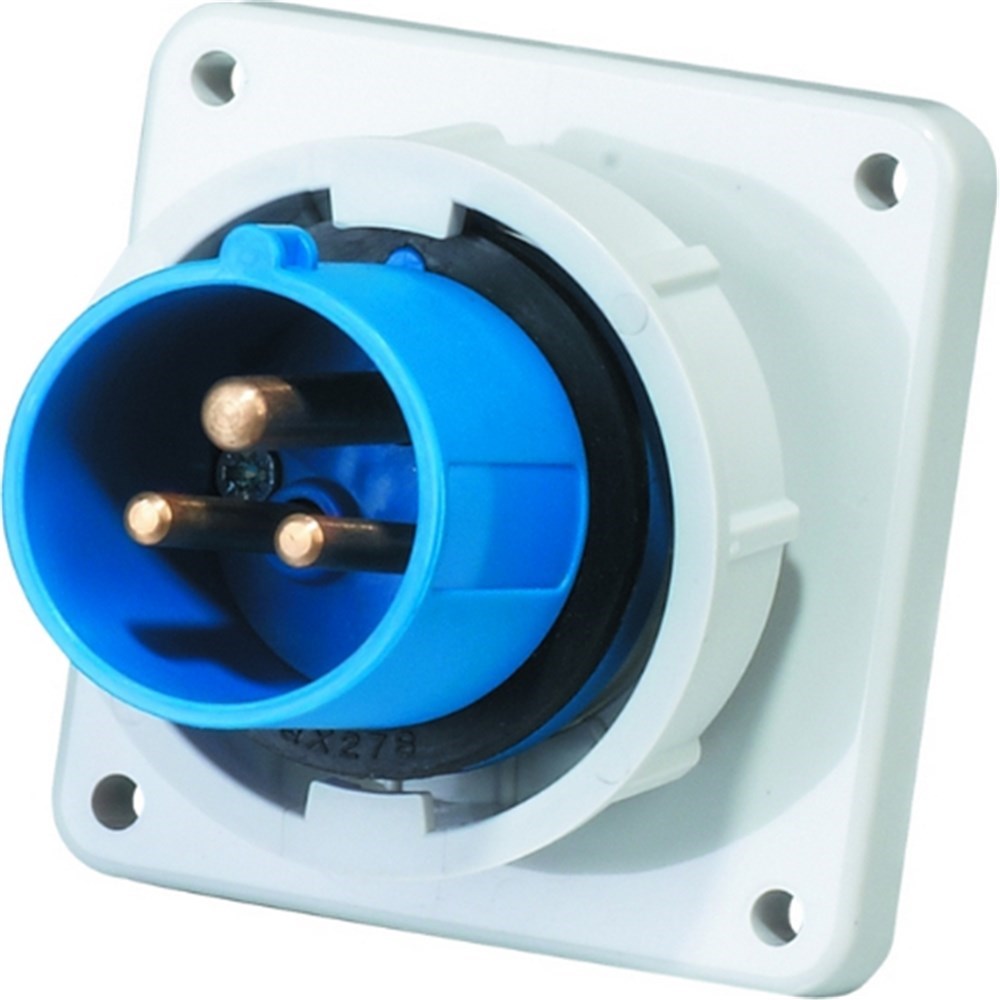

IPD EU67PP316 Straight Panel Mounted Panel Mount 3 16A 230VAC/DC IP67

Product Code: EU67PP316

  • Rated for 16 A, 230 VAC/VDC
  • IP67 protection for harsh conditions
  • Panel mounting design
  • 6h earthing pin position
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Panel Mounted Appliance Inlet
Brand
IPD
Series
EU
Application
Industrial power distribution, Construction sites, Manufacturing plants, Outdoor electrical installations

Electrical

Rated Current (In)
16A
Rated Voltage (Ur)
230V
No. of Switching Poles
2
With Neutral Conductor
Yes

Mechanical

Colour
Blue
No. of Pins
3 Pin
Max. Cable Size
2.5 mm²

Dimensions & Physical Data

Depth
72mm
Height
85.7mm
Weight
0.152kg
Width
85.7mm

Environmental

IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
EN/IEC 60309-2
