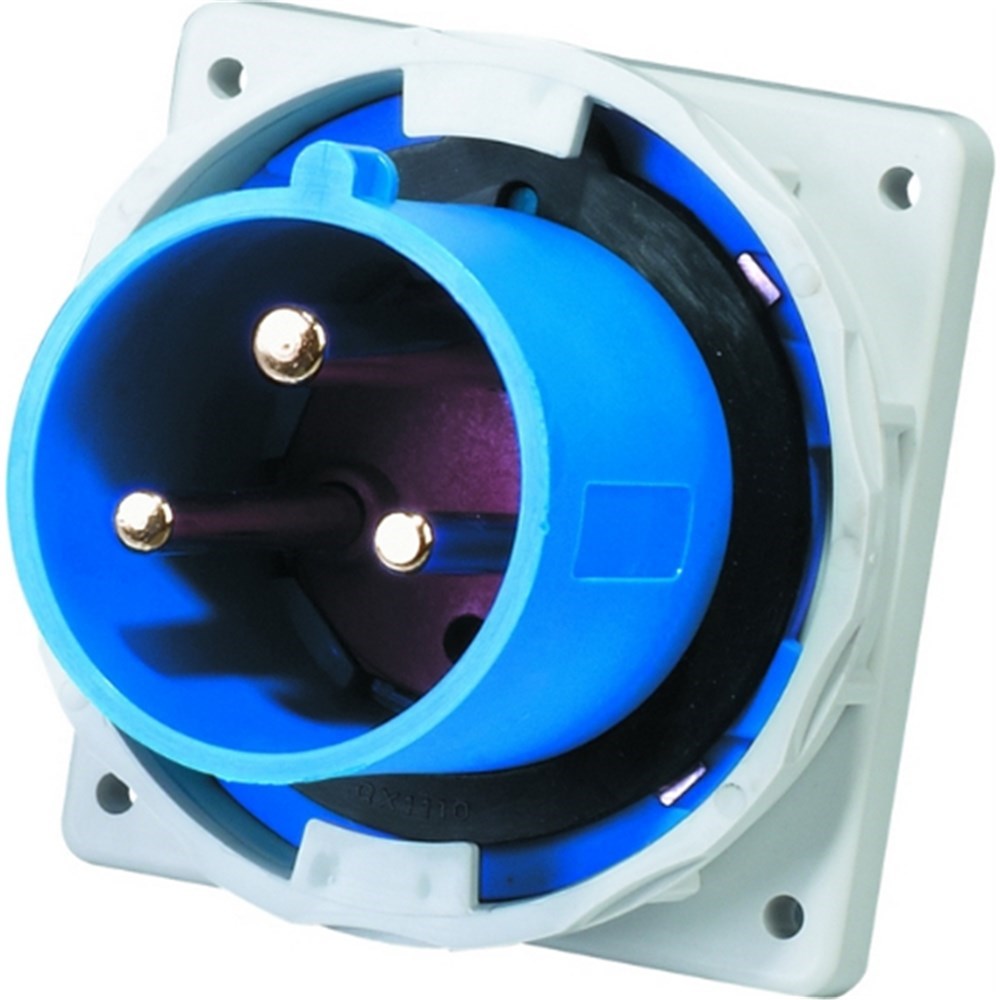

IPD EU67PP3125 Straight Panel Mounted Panel Mount 3 125A 230VAC/DC IP67

Product Code: EU67PP3125

  • High current capacity of 125 A
  • Supports 230 VAC/VDC voltage
  • IP67 for robust protection
  • Easy panel mounting design
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Panel Mounted Appliance Inlet
Brand
IPD
Series
EU
Application
Industrial power distribution, Construction sites, Manufacturing plants, Outdoor electrical installations

Electrical

Rated Current (In)
125A
Rated Voltage (Ur)
230V
No. of Switching Poles
2
With Neutral Conductor
Yes

Mechanical

Colour
Blue
No. of Pins
3 Pin
Max. Cable Size
35 mm²

Dimensions & Physical Data

Depth
112mm
Height
130mm
Weight
0.886kg
Width
130mm

Environmental

IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
EN/IEC 60309-2

Documents

IPD Product Catalogue V17
