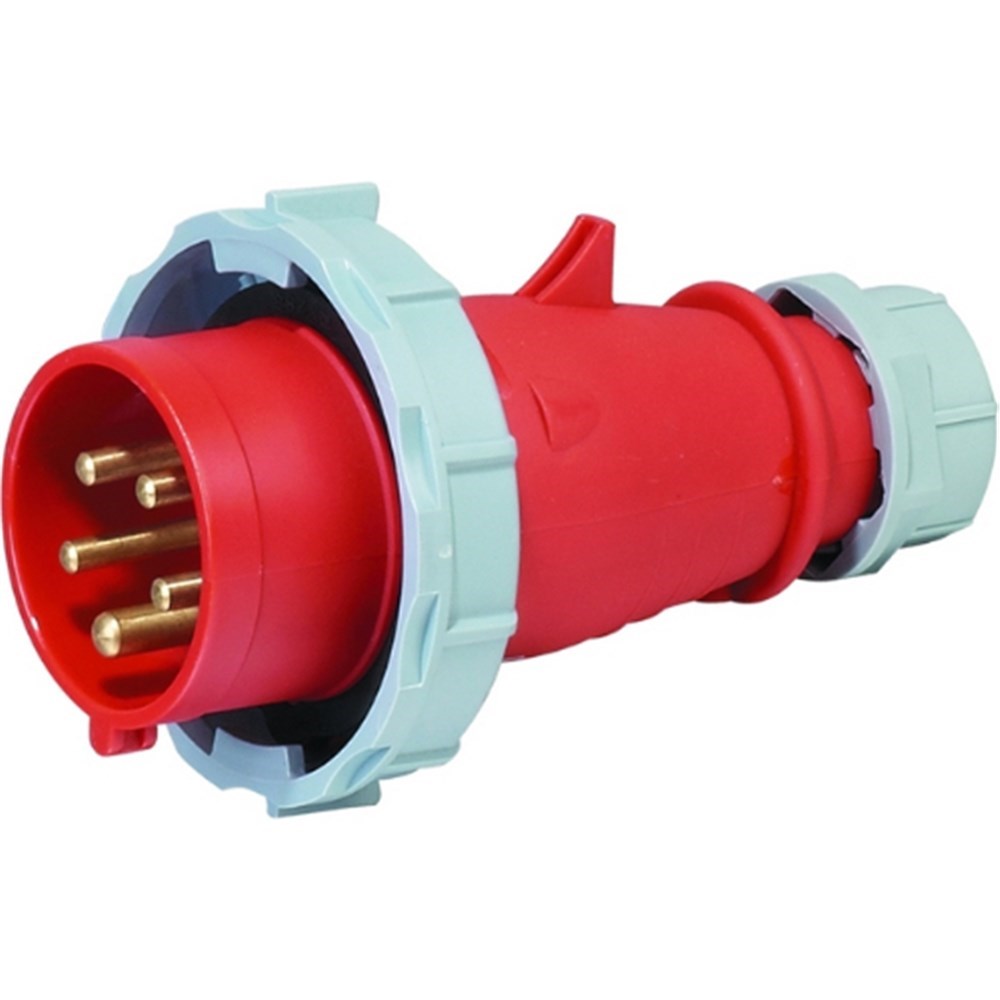

IPD EU67P516 Straight Plug 5 16A 400VAC/DC IP67

Product Code: EU67P516

  • Rated for 16 A current
  • Complies with IEC 60309-2 standards
  • Supports 400 VAC/VDC voltage
  • IP67 protection for water and dust resistance
  • Compression gland style
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Plug
Brand
IPD
Series
EU
Application
Industrial power distribution, Construction sites, Manufacturing plants, Outdoor electrical installations

Electrical

Rated Current (In)
16A
Rated Voltage (Ur)
400V
No. of Switching Poles
4
With Neutral Conductor
Yes

Mechanical

Colour
Red
No. of Pins
5 Pin
Max. Cable Size
2.5 mm²

Dimensions & Physical Data

Weight
0.205kg

Environmental

IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
EN/IEC 60309-2
