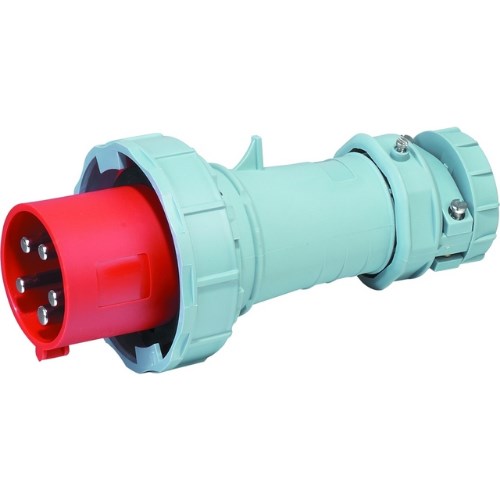

IPD EU67P5125 Straight Plug 5 125A 400VAC/DC IP67

Product Code: EU67P5125

  • Rated for 125 A current
  • Complies with IEC 60309-2 standards
  • Suitable for 400 VAC/VDC applications
  • IP67 protection against dust and water
  • Clamp-style gland design
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Straight Plug
Brand
IPD

Electrical

Rated Current (In)
125A
Rated Voltage (Ur)
400 VAC/VDC

Mechanical

Cable Cross Section
25-35 sq-mm
Colour
Red
Earthing Pin Position
6h
Gland Entries
38 mm (Maximum Cable diameter )
Gland Style
Clamp
Material
Thermoplastic PA 6
No. of Pins
5

Dimensions & Physical Data

Weight
1.3kg

Environmental

IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
IEC 60309-2

Documents

IPD Product Catalogue V17
