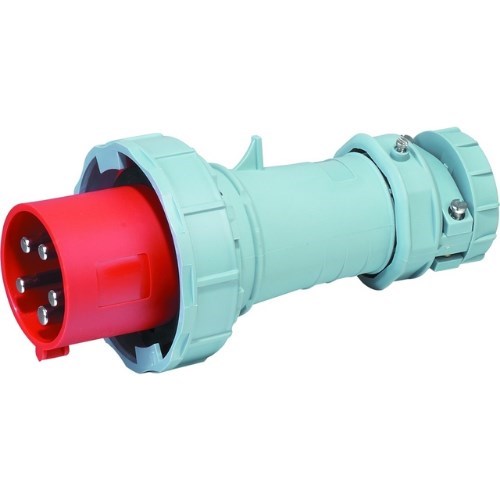

IPD EU67P4125 Straight Plug 4 125A 400VAC/DC IP67

Product Code: EU67P4125

  • Rated for 125 A current
  • Complies with IEC 60309-2 standards
  • Supports 400 VAC/VDC voltage
  • IP67 protection rating
  • Clamp gland style
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Plug
Brand
IPD
Series
EU
Application
Industrial power distribution, Construction sites, Manufacturing plants, Outdoor electrical installations

Electrical

Rated Current (In)
125A
Rated Voltage (Ur)
400V
No. of Switching Poles
3

Mechanical

Colour
Red
No. of Pins
4 Pin
Max. Cable Size
35 mm²

Dimensions & Physical Data

Weight
1.189kg

Environmental

IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
EN/IEC 60309-2

Documents

IPD Product Catalogue V17
