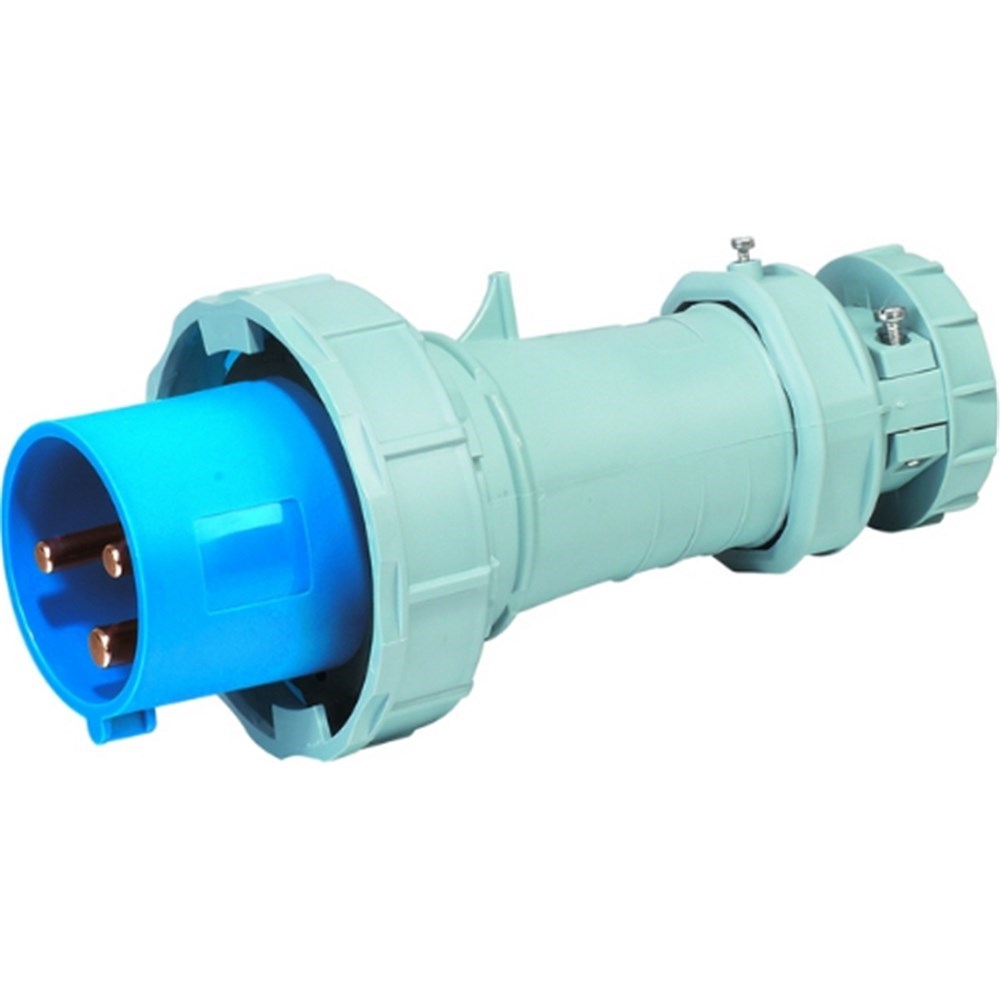

IPD EU67P363 Straight Plug 3 63A 230VAC/DC IP67

Product Code: EU67P363

  • 63 A rated current capacity
  • Complies with IEC 60309-2 standards
  • Suitable for 230 VAC/VDC applications
  • IP67 protection against dust and water
  • Clamp style gland for secure connection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Plug
Brand
IPD
Series
EU
Application
Industrial power distribution, Construction sites, Manufacturing plants, Outdoor electrical installations

Electrical

Rated Current (In)
63A
Rated Voltage (Ur)
230V
No. of Switching Poles
2
With Neutral Conductor
Yes

Mechanical

Colour
Blue
No. of Pins
3 Pin
Max. Cable Size
16 mm²

Dimensions & Physical Data

Depth
238.9mm (length)
Weight
0.66kg
Width
112.9mm (dia.)

Environmental

IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
EN/IEC 60309-2

Documents

IPD Product Catalogue V17
