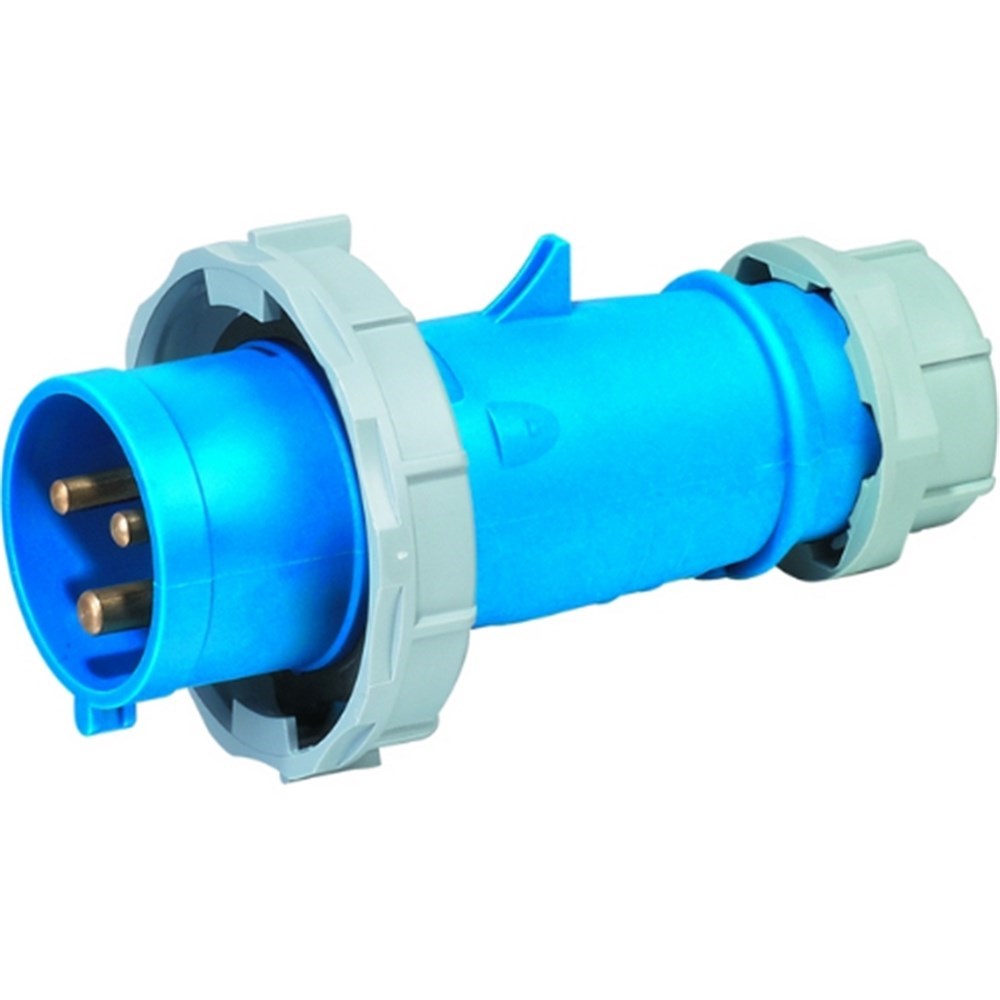

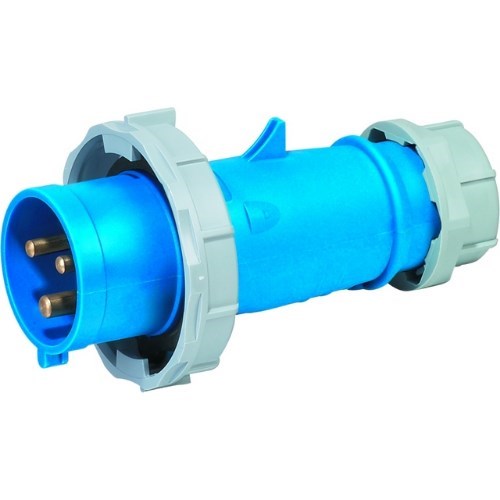

IPD EU67P332 Straight Plug 3 32A 230VAC/DC IP67

Product Code: EU67P332

  • Suitable for 32 A current
  • Complies with IEC 60309-2
  • Supports 230 VAC/VDC voltage
  • IP67 rated for water/dust protection
  • Compression gland style
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Plug
Brand
IPD
Series
EU
Application
Industrial power distribution, Construction sites, Manufacturing plants, Outdoor electrical installations

Electrical

Rated Current (In)
32A
Rated Voltage (Ur)
230V
No. of Switching Poles
2
With Neutral Conductor
Yes

Mechanical

Colour
Blue
No. of Pins
3 Pin
Max. Cable Size
6 mm²

Dimensions & Physical Data

Depth
173mm (length)
Weight
0.275kg
Width
93.3mm (dia.)

Environmental

IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
EN/IEC 60309-2
