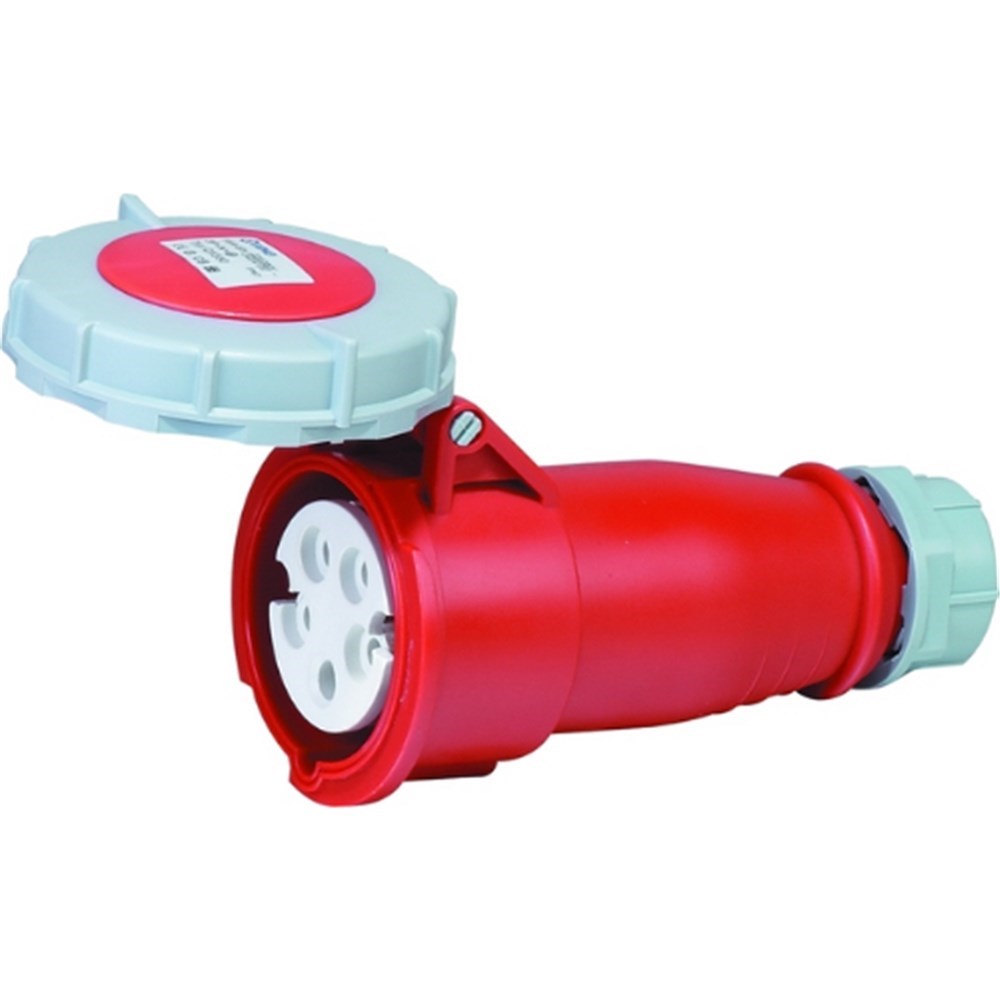

IPD EU67ES532 Extension Socket 5 32A 400VAC/DC IP67

Product Code: EU67ES532

  • 32A socket for high current applications
  • Complies with IEC 60309-2 standards
  • Suitable for 400V AC/DC systems
  • IP67 rating ensures dust and water protection
  • Compression gland style for secure connections
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Extension Socket
Brand
IPD

Electrical

Rated Current (In)
32A
Rated Voltage (Ur)
400 VAC/VDC

Mechanical

Cable Cross Section
2.5-10 sq-mm
Colour
Red
Earthing Pin Position
6h
Gland Entries
25 mm (Maximum Cable diameter )
Gland Style
Compression
Material
Thermoplastic PA 6
No. of Pins
5

Dimensions & Physical Data

Weight
0.4kg

Environmental

IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
IEC 60309-2

Documents

IPD Product Catalogue V17
