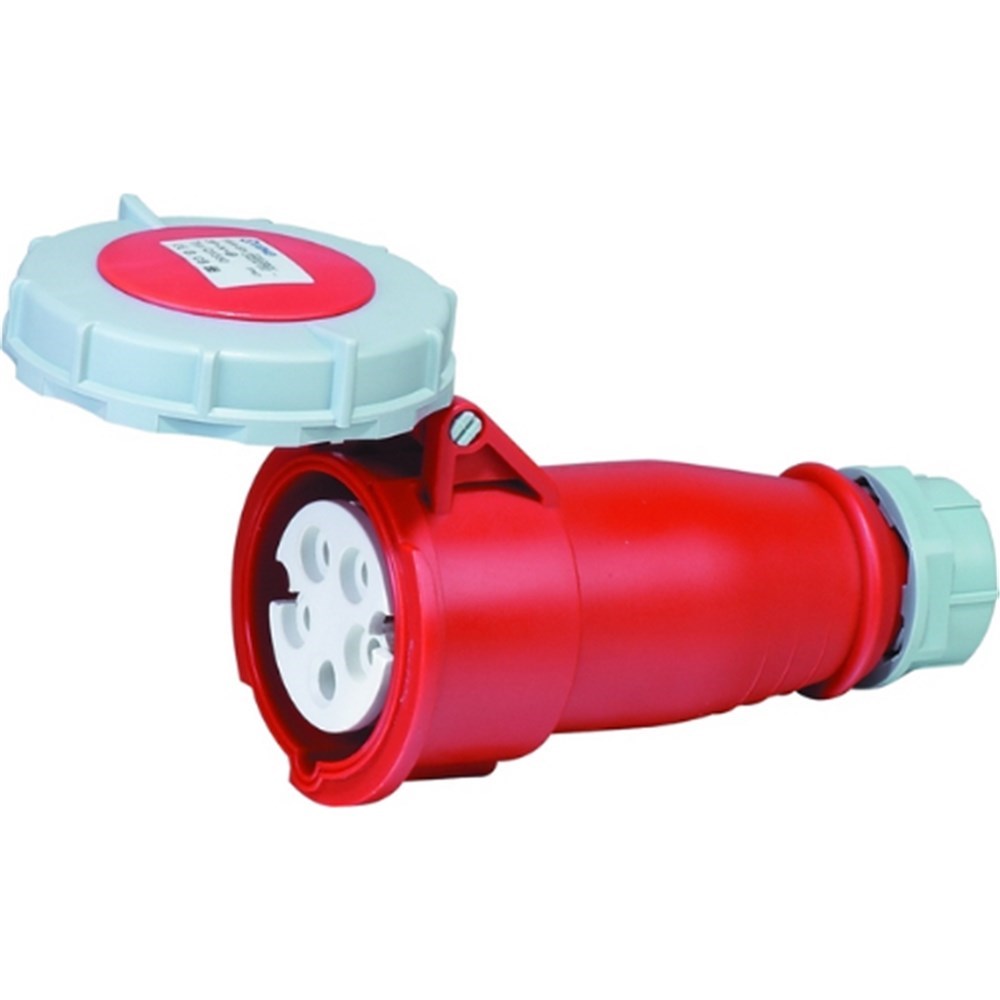

IPD EU67ES416 Extension Socket 4 16A 400VAC/DC IP67

Product Code: EU67ES416

  • Rated for 16A current
  • Complies with IEC 60309-2 standards
  • Supports 400 VAC/VDC voltage
  • IP67 protection against dust and water
  • Features a compression gland style
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Extension Socket
Brand
IPD
Series
EU
Application
Industrial power distribution, construction sites, manufacturing plants and outdoor electrical installations

Electrical

No. of Phases
3 phase
Plug Type
6h earthing position
Rated Current (In)
16A
Rated Voltage (Ur)
400 VAC/VDC
No. of Switching Poles
3
With Neutral Conductor
No
With Switch
No

Mechanical

Colour
Red
Gland Entries
25 mm maximum cable diameter
Material
Thermoplastic PA 6
No. of Pins
4 Pin
Pin Type
Round
Max. Cable Size
1.5 - 4 mm²

Dimensions & Physical Data

Depth
Ø 63mm
Length
160mm
Weight
0.2kg

Environmental

IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
IEC 60309-2
Certifications / Approvals
CE

Documents

IPD Product Catalogue V17
