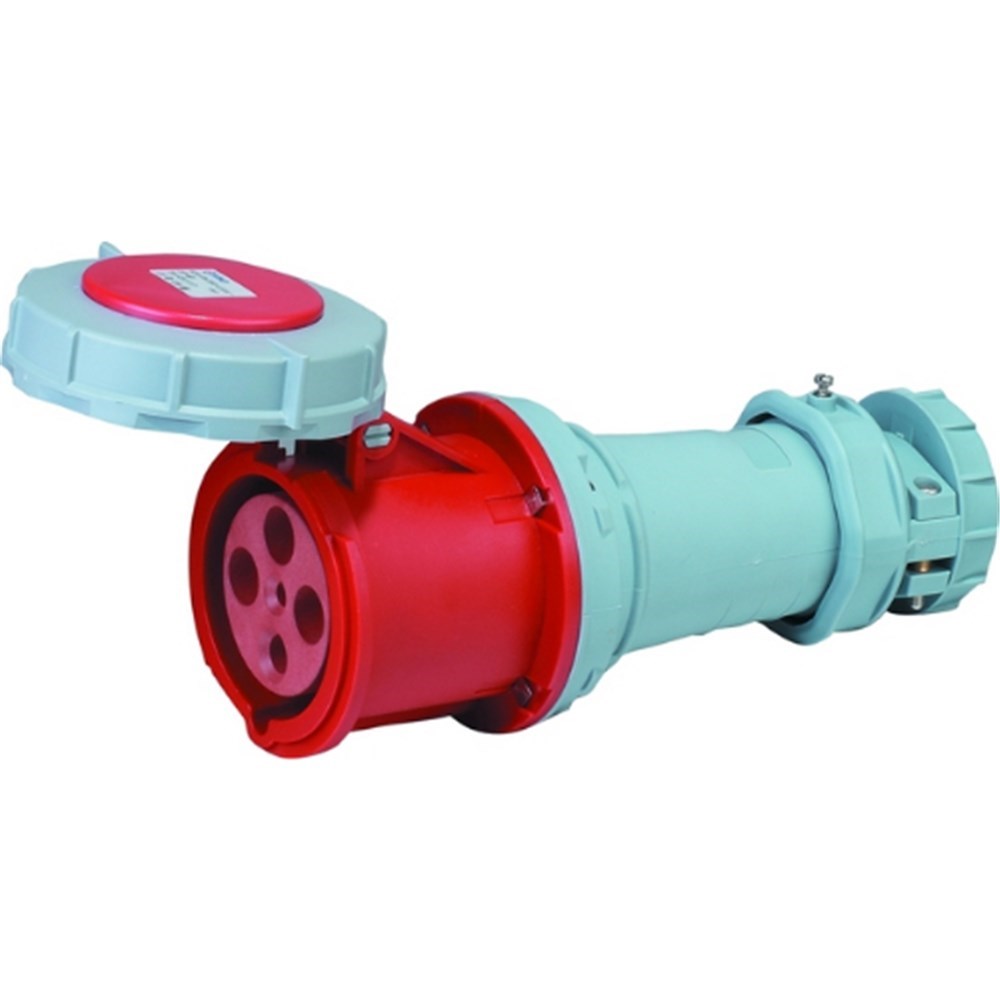

IPD EU67ES4125 Extension Socket 4 125A 400VAC/DC IP67

Product Code: EU67ES4125

  • 125 A current rating for high power applications
  • Complies with IEC 60309-2 standards
  • Suitable for 400 VAC/VDC operations
  • IP67 protection for dust and water resistance
  • Clamp gland style for secure connections
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Extension Socket
Brand
IPD
Series
EU
Application
Industrial power distribution, construction sites, manufacturing plants and outdoor electrical installations

Electrical

No. of Phases
3 phase
Plug Type
6h earthing position
Rated Current (In)
125A
Rated Voltage (Ur)
400 VAC/VDC
No. of Switching Poles
3
With Neutral Conductor
No
With Switch
No

Mechanical

Colour
Red
Gland Entries
38 mm maximum cable diameter
Material
Thermoplastic PA 6
No. of Pins
4 Pin
Pin Type
Round
Max. Cable Size
25 - 35 mm²

Dimensions & Physical Data

Depth
Ø 90mm
Length
300mm
Weight
1.5kg

Environmental

IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
IEC 60309-2
Certifications / Approvals
CE

Documents

IPD Product Catalogue V17
