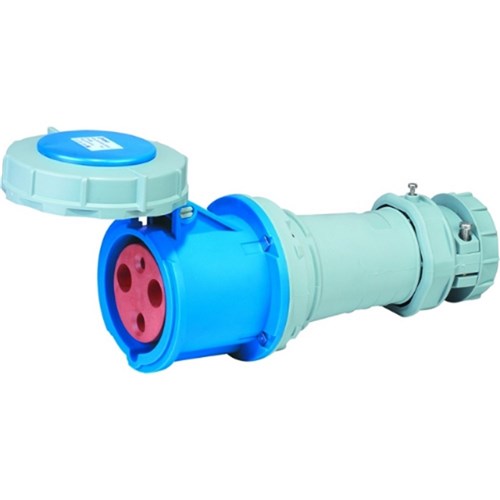

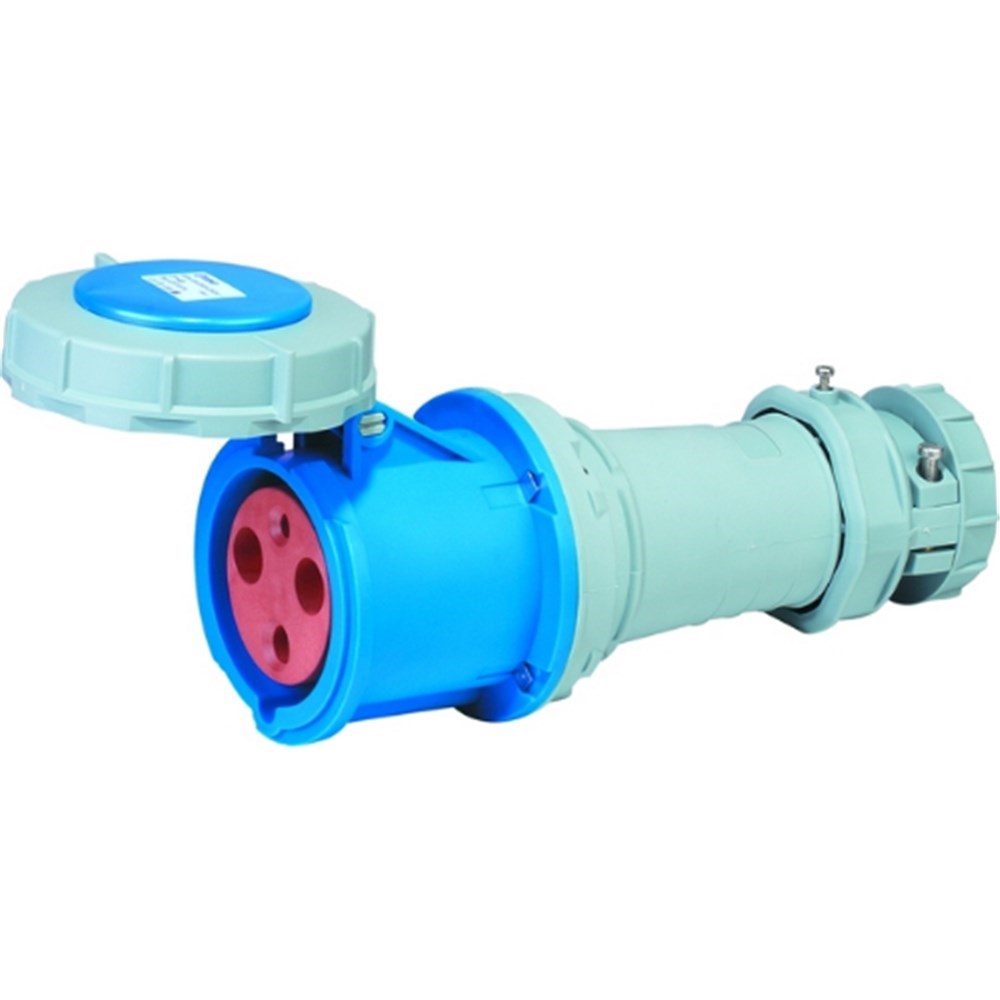

IPD EU67ES363 Extension Socket 3 63A 230VAC/DC IP67

Product Code: EU67ES363

  • 63A socket for high power applications
  • Suitable for 230V AC/DC systems
  • IP67 rating ensures water and dust protection
  • Complies with IEC 60309-2 standards
  • Clamp-style gland for secure connections
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Extension Socket
Brand
IPD
Series
EU
Application
Industrial power distribution, construction sites, manufacturing plants and outdoor electrical installations

Electrical

No. of Phases
1 phase
Plug Type
6h earthing position
Rated Current (In)
63A
Rated Voltage (Ur)
230 VAC/VDC
No. of Switching Poles
2
With Neutral Conductor
Yes
With Switch
No

Mechanical

Colour
Blue
Gland Entries
32 mm maximum cable diameter
Material
Thermoplastic PA 6
No. of Pins
3 Pin
Pin Type
Round
Max. Cable Size
6 - 16 mm²

Dimensions & Physical Data

Depth
Ø 77mm
Length
260mm
Weight
0.8kg

Environmental

IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
IEC 60309-2
Certifications / Approvals
CE
