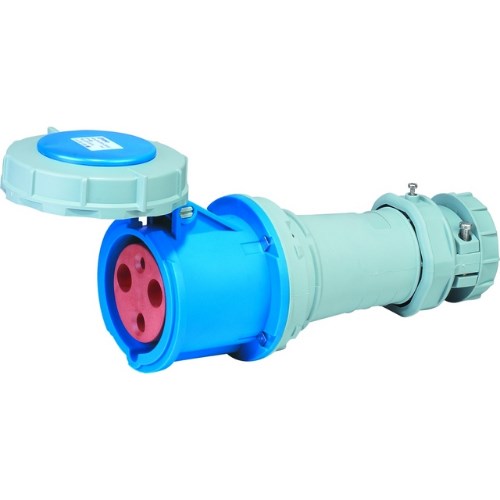

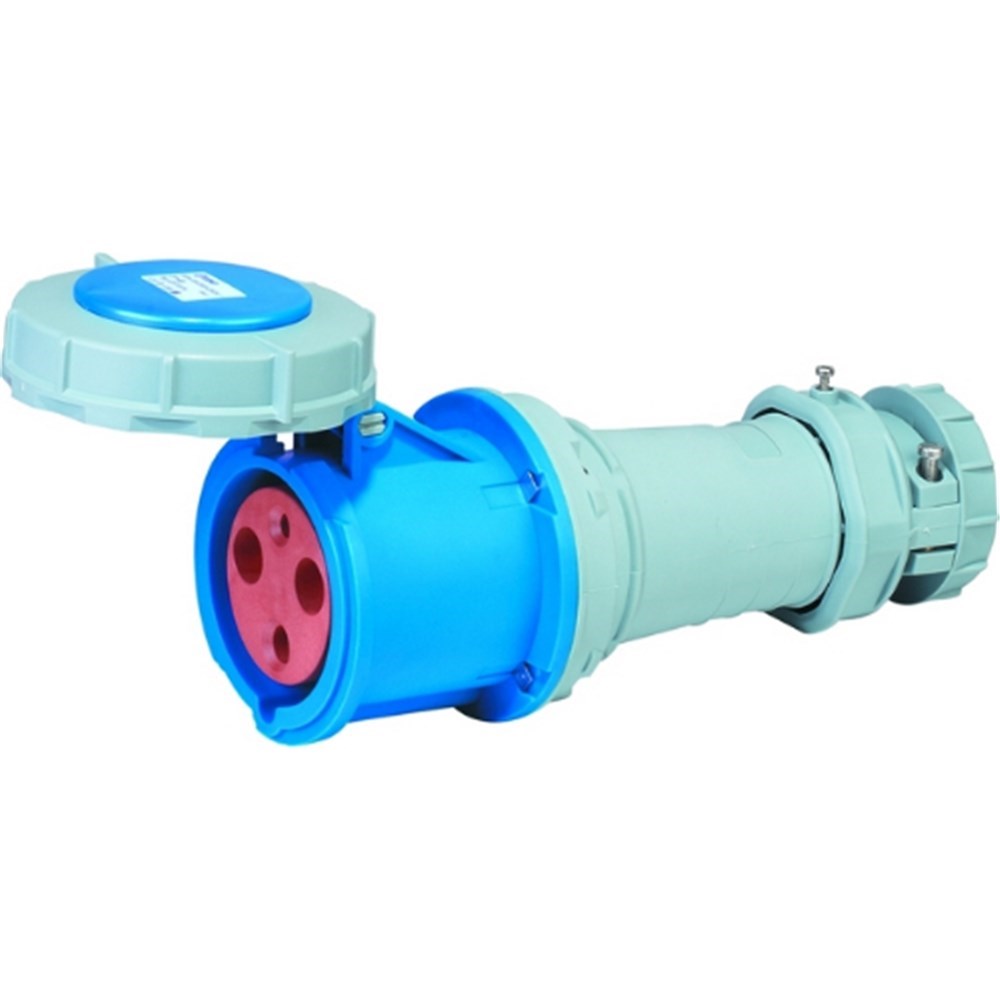

IPD EU67ES3125 Extension Socket 3 125A 230VAC/DC IP67

Product Code: EU67ES3125

  • Rated for 125 A current
  • Complies with IEC 60309-2 standards
  • Supports 230 VAC/VDC voltage
  • IP67 protection rating
  • Clamp gland style
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Extension Socket
Brand
IPD
Series
EU
Application
Industrial power distribution, construction sites, manufacturing plants and outdoor electrical installations

Electrical

No. of Phases
1 phase
Plug Type
6h earthing position
Rated Current (In)
125A
Rated Voltage (Ur)
230 VAC/VDC
No. of Switching Poles
2
With Neutral Conductor
Yes
With Switch
No

Mechanical

Colour
Blue
Gland Entries
38 mm maximum cable diameter
Material
Thermoplastic PA 6
No. of Pins
3 Pin
Pin Type
Round
Max. Cable Size
25 - 35 mm²

Dimensions & Physical Data

Depth
Ø 90mm
Length
300mm
Weight
1.5kg

Environmental

IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
IEC 60309-2
Certifications / Approvals
CE

Documents

IPD Product Catalogue V17
