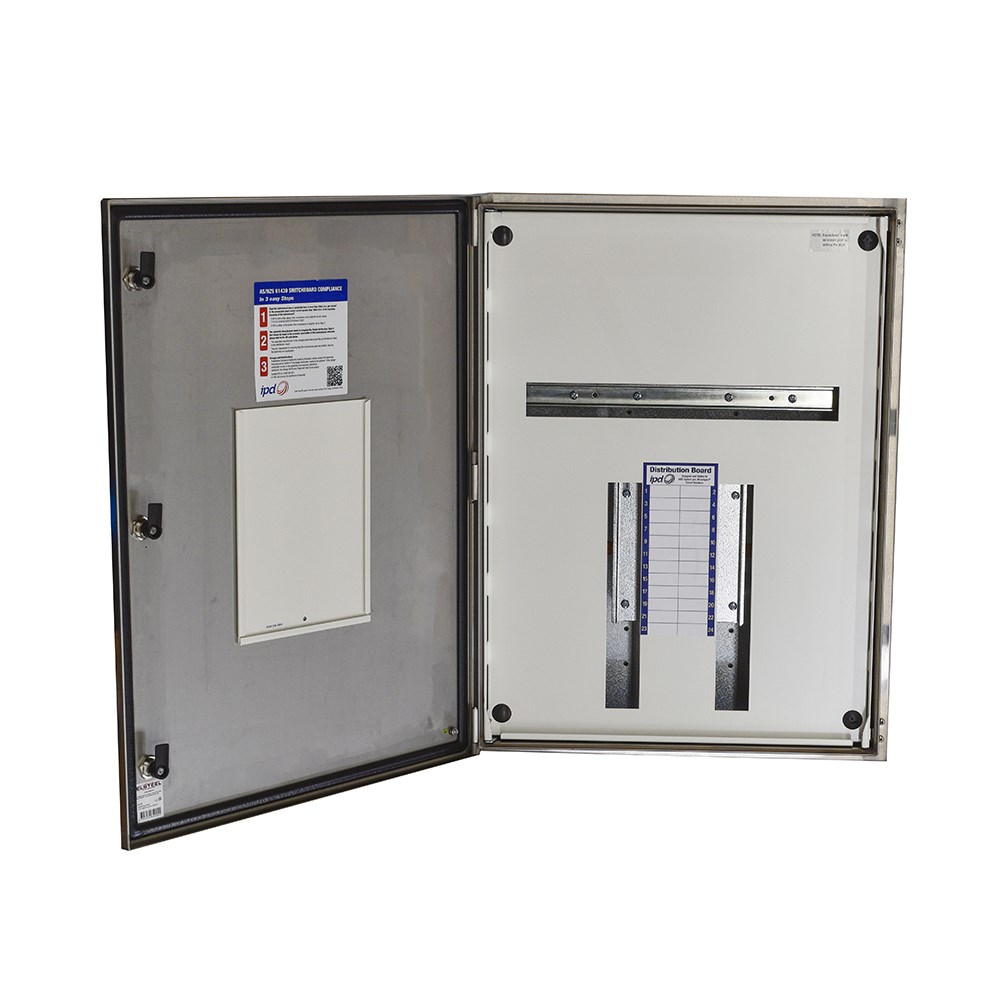

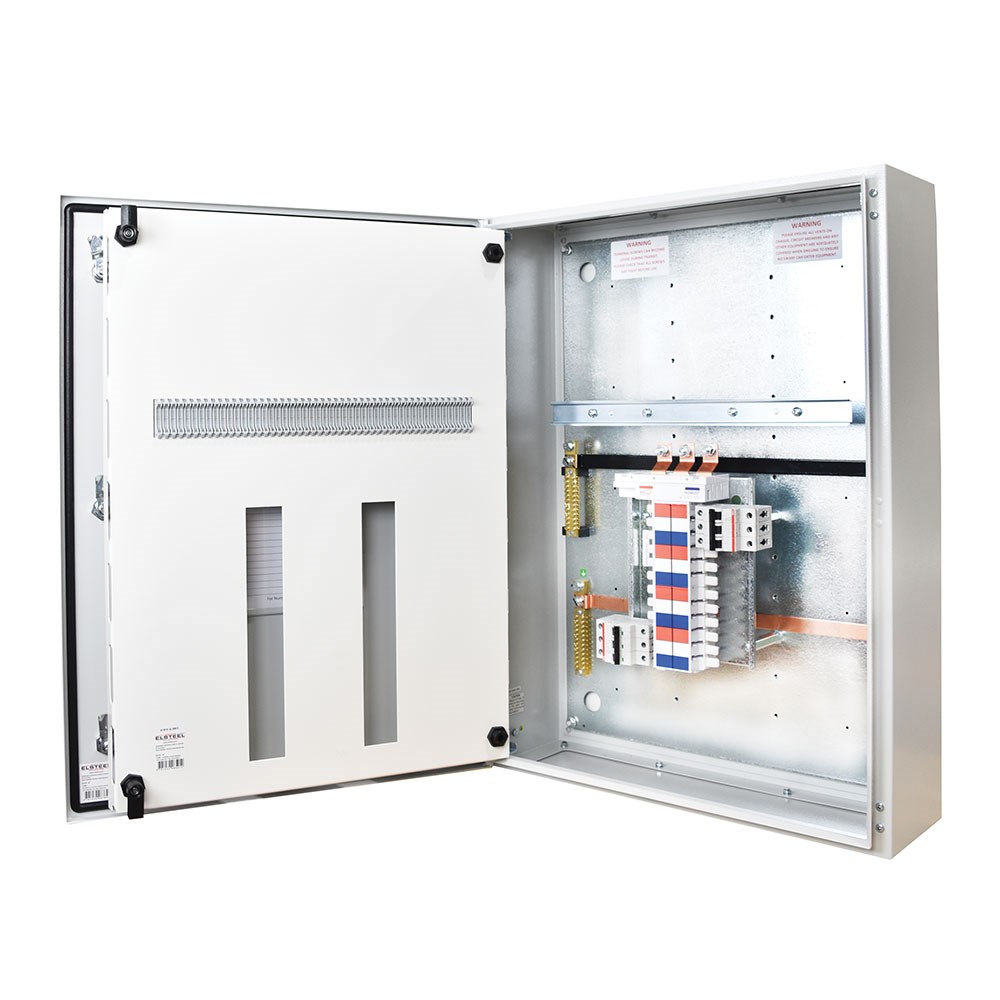

IPD E43L48N Distribution Board 48-P IP43 RAL 7035 Grey Mild Steel 1000mm H x 600mm W x 200mm D

Product Code: E43L48N

  • 48 poles for versatile applications
  • IP43 protection against dust and water
  • Compact size: 600mm W x 1000mm H x 200mm D
  • Durable mild steel construction
  • Sleek RAL 7035 light grey finish
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Distribution Board
Brand
IPD
Series
E43 PRO

Electrical

Chassis Rated Current
250 A
Chassis Type
IT
Earth and Neutral Bar Rated Current
EB (165A)
Max. Rated Operation AC Voltage (Ue)
415 V
Metering Included
No
No. of Poles (18mm pitch)
48
Rated Impulse Withstand Voltage (Uimp)
4 kV
Rated Insulation Voltage (Ui)
690 V
Rated Current (In)
250 A

Mechanical

Colour
RAL 7035
IK Rating
IK08
Lock Option
Coin Locks, L Handle, T Handle, Swing Handle, KNob Lock, Three point locking rods
Default Lock
Double-bit IEC panel keys

Dimensions & Physical Data

Depth
200 mm
Height
1000 mm
Width
600 mm
Enclosure Material and Thickness
Mildsteel,1.00mm

Environmental

IP Rating
IP43
