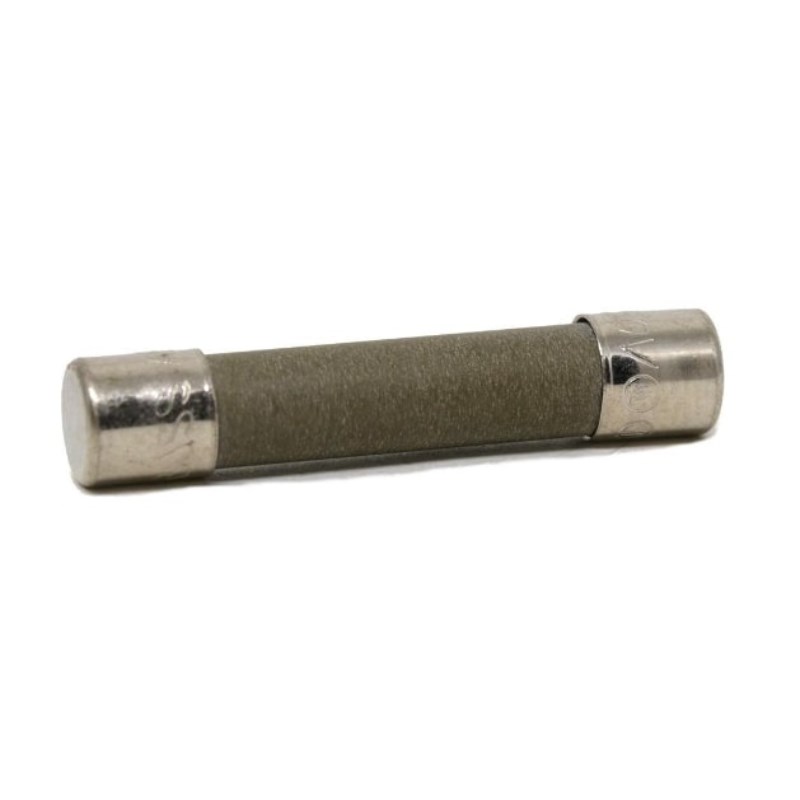

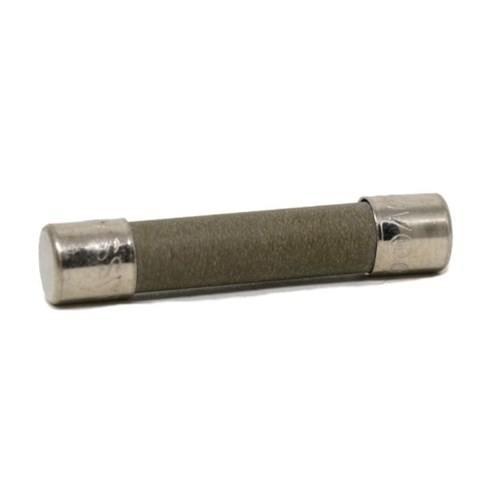

IPD C12 Fuse Link 250VAC 12A 6.3mm Dia x 32mm L Fuse

Product Code: AABC12

  • Compact miniature design for tight spaces
  • Handles up to 12 A current
  • Operates at 250 VAC voltage
  • Easy clip mounting system
  • Durable ceramic construction
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Miniature Fuse Link
Brand
IPD
Series
AABC
Application
Primary circuit protection (power supplies, battery chargers, consumer electronics, test equipment, monitors)

Electrical

Breaking Capacity
35 kA at 250 V AC
Rated Current (In)
0
Rated Voltage (Ur)
250 V AC / 125 V DC
Speed Class
Fast-Acting

Mechanical

Body Style
Cylindrical Tube
Material
Body: ceramic, End cap: nickel-plated brass
Size Code
3AG
Connection/Termination
Flush ends
Fuse Holder
ATB34I

Dimensions & Physical Data

Length
31.75 mm
Weight
0.002 kg (Approx.)
Width
Ø 6.35 mm

Safety, Standards & Compliance

Standards and Approvals
CSA Certified – Class No: 1422-01 & 1422-30 (File 53787)

Documents

IPD Product Catalogue V17
