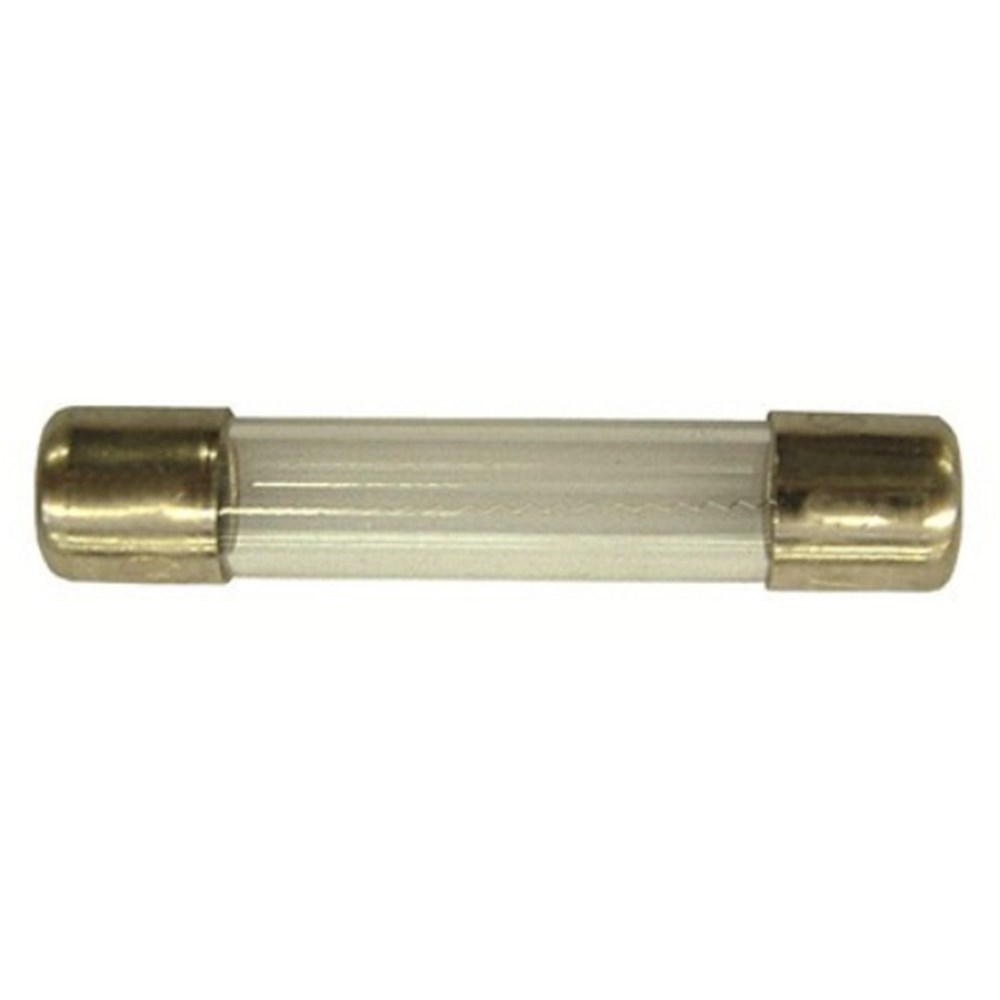

IPD AMDL2 Miniature Fuse Link 2A 250VAC Slow Blow Glass 3AG Fuse 6.3mmDiax32mm L 100-10000A Interrupt Glass Time Delay

Product Code: AMDL2

  • 2A rated current, 250VAC.
  • Slow blow glass fuse, 3AG type.
  • Compact size: 6.3mm x 32mm.
  • High interrupt rating: 100-10000A.
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Miniature Cartridge Fuse
Brand
IPD
Series
AMDL
Application
Electronic circuit protection where inrush currents may be present

Electrical

Rated Current (In)
0.083333
Rated Frequency
50/60 Hz
Rated Voltage (Ur)
250 V AC
Speed Class
Time delay / slow blow

Mechanical

Body Style
Cylindrical cartridge
Indicators
without indicator
Material
Glass tube; nickel-plated brass end caps
Mounting
Fuse holder / clips
Size Code
3AB / 3AG, 6.3 x 32
Connection/Termination
Ferrule end caps

Dimensions & Physical Data

Length
31.75 mm
Weight
0.002 kg
Width
Ø 6.35 mm

Safety, Standards & Compliance

Standards and Approvals
UL 248-14

Documents

IPD Product Catalogue V17
