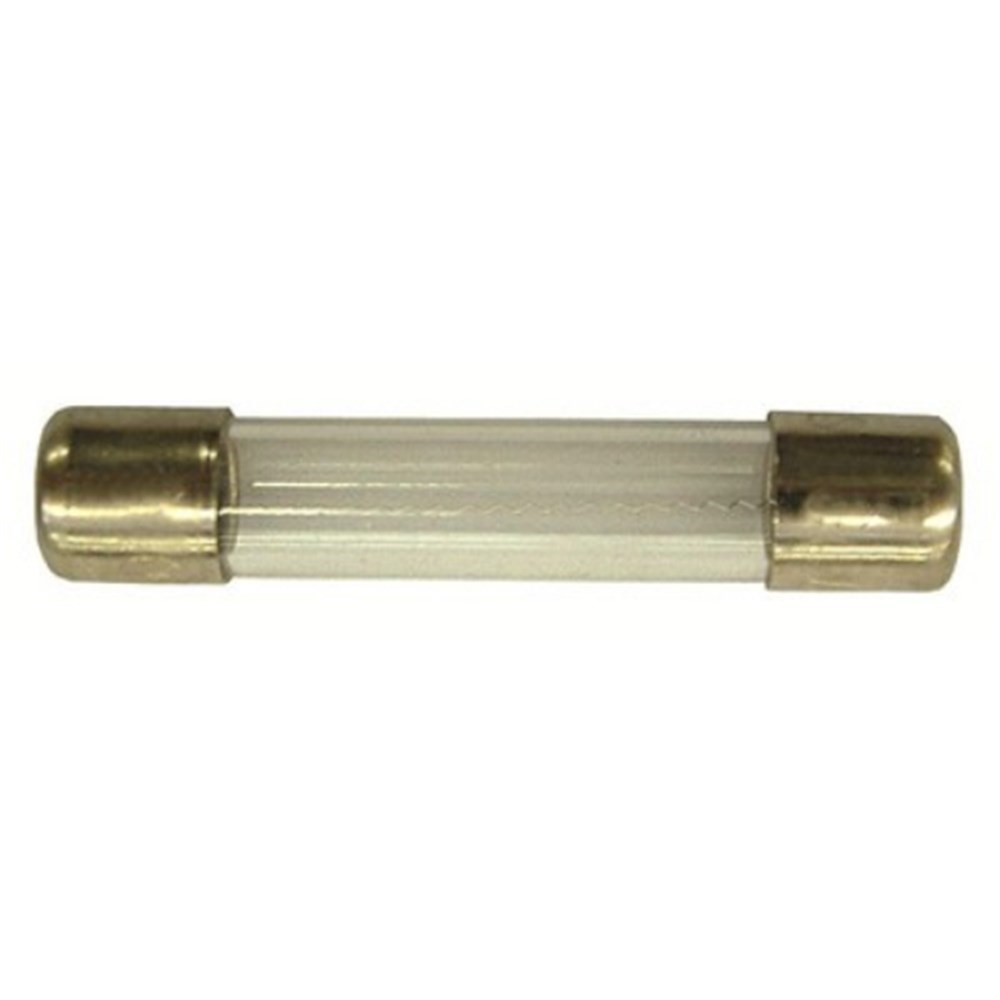

IPD AMDL15 Miniature Fuse Link 15A 250VAC Slow Blow Glass 3AG Fuse 6.3mm Dia x 32mm L 1000A Interrupt Glass Time Delay

Product Code: AMDL15

  • 15A, 250VAC rated for reliable performance
  • Compact size: 6.3mm Dia x 32mm L
  • Slow blow glass fuse for delayed response
  • High interrupt rating of 1000A
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Miniature Cartridge Fuse
Brand
IPD
Series
AMDL
Application
Electronic circuit protection where inrush currents may be present

Electrical

Rated Current (In)
15A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
32V AC
Speed Class
Time delay / slow blow

Mechanical

Body Style
Cylindrical cartridge
Indicators
without indicator
Material
Glass tube; nickel-plated brass end caps
Mounting
Fuse holder / clips
Size Code
3AB / 3AG, 6.3 x 32
Connection/Termination
Ferrule end caps

Dimensions & Physical Data

Length
31.75mm
Weight
0.002kg
Width
Ø 6.35mm

Safety, Standards & Compliance

Standards and Approvals
UL 248-14
