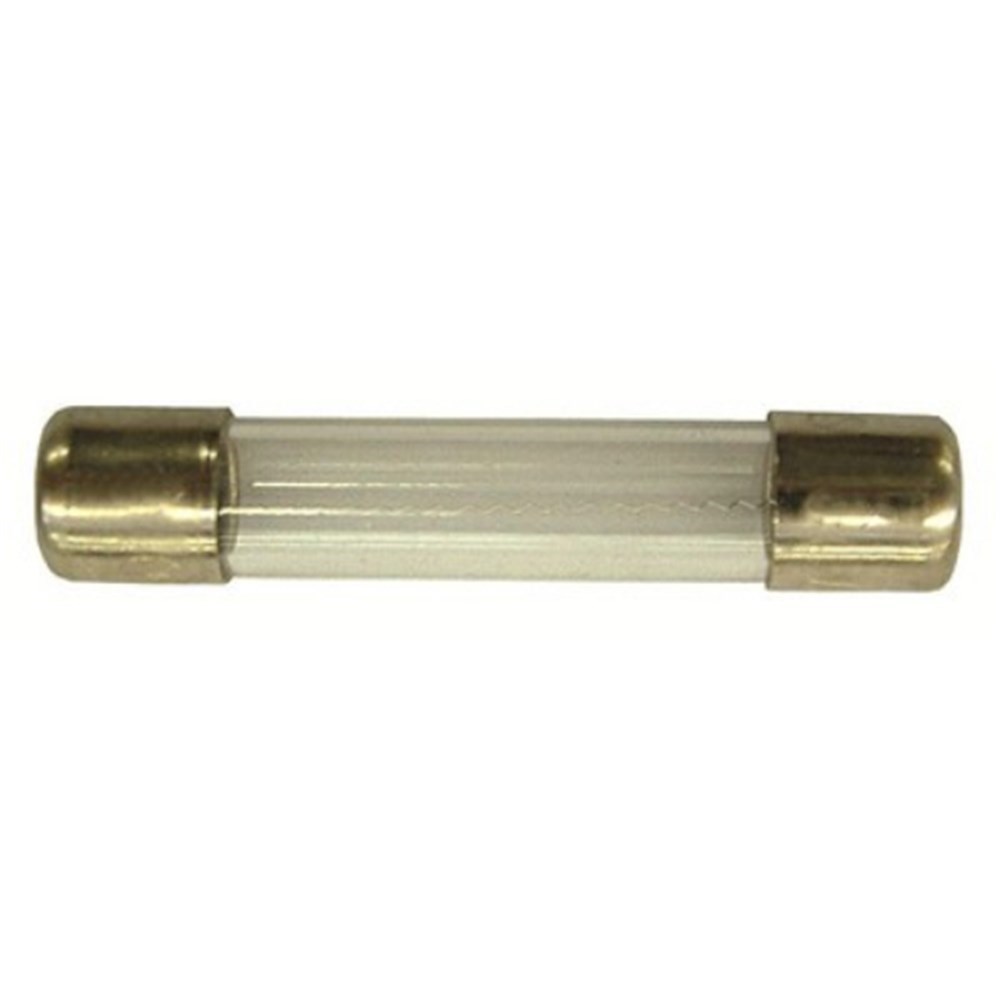

IPD AMDL1 Miniature Fuse Link 1A 250VAC Slow Blow Glass 3AG Fuse 6.3mm Dia x 32mm L 35-10000A Interrupt Glass Time Delay

Product Code: AMDL1

  • Miniature size: 6.3 mm Dia x 32 mm L
  • Rated for 1 A at 250 VAC
  • Slow blow glass fuse, type 3AG
  • High interrupt rating: 35-10000 A
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Miniature Cartridge Fuse
Brand
IPD
Series
AMDL
Application
Electronic circuit protection where inrush currents may be present

Electrical

Rated Current (In)
0.041667
Rated Frequency
50/60 Hz
Rated Voltage (Ur)
250 V AC
Speed Class
Time delay / slow blow

Mechanical

Body Style
Cylindrical cartridge
Indicators
without indicator
Material
Glass tube; nickel-plated brass end caps
Mounting
Fuse holder / clips
Size Code
3AB / 3AG, 6.3 x 32
Connection/Termination
Ferrule end caps

Dimensions & Physical Data

Length
31.75 mm
Weight
0.002 kg
Width
Ø 6.35 mm

Safety, Standards & Compliance

Standards and Approvals
UL 248-14

Documents

IPD Product Catalogue V17
