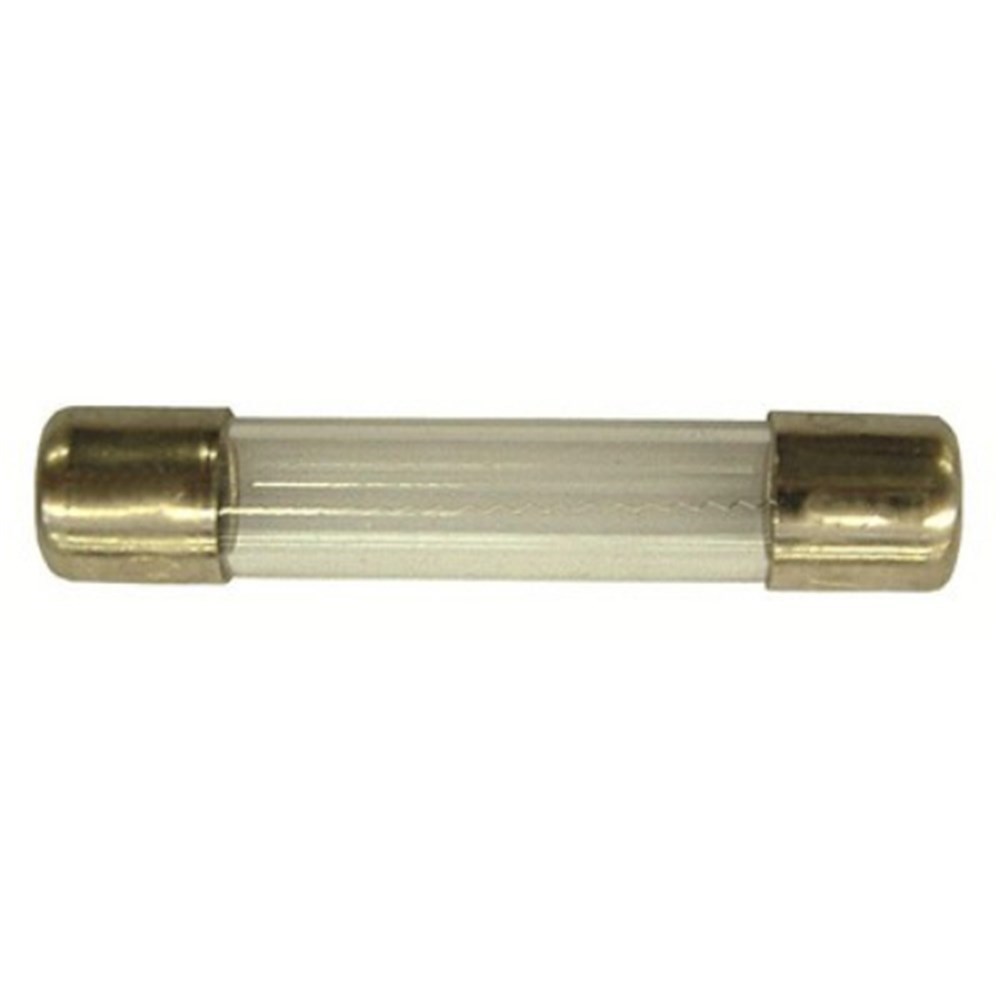

IPD AMDL1.5 Miniature Fuse Link 1.5A 250VAC Slow Blow Glass 3AG Fuse 6.3mmDiax32mm L 100-10000A Interrupt

Product Code: AMDL1.5

  • 1.5A, 250VAC slow blow glass fuse
  • Compact 6.3mm x 32mm size
  • Handles interrupt ratings up to 10000A
  • Durable glass construction
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Miniature Cartridge Fuse
Brand
IPD
Series
AMDL
Application
Electronic circuit protection where inrush currents may be present

Electrical

Rated Current (In)
1.5A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
250V AC
Speed Class
Time delay / slow blow

Mechanical

Body Style
Cylindrical cartridge
Indicators
without indicator
Material
Glass tube; nickel-plated brass end caps
Mounting
Fuse holder / clips
Size Code
3AB / 3AG, 6.3 x 32
Connection/Termination
Ferrule end caps

Dimensions & Physical Data

Length
31.75mm
Weight
0.002kg
Width
Ø 6.35mm

Safety, Standards & Compliance

Standards and Approvals
UL 248-14

Documents

IPD Product Catalogue V17
