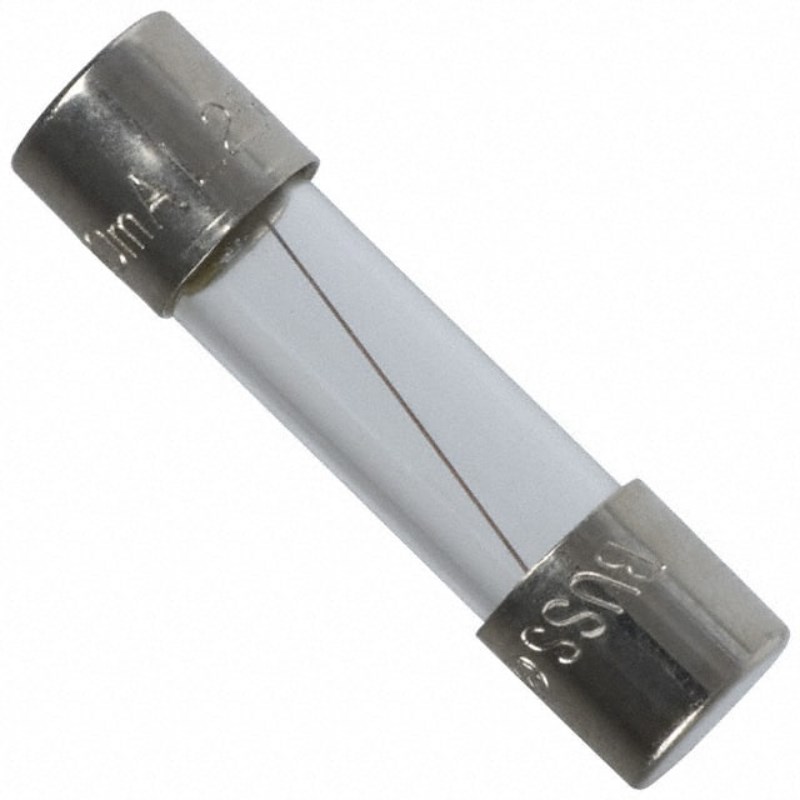

IPD AGDC2.5 Miniature Fuse Link 2.5A 250VAC 5mmDiax20mm L Slow Blow Glass M205 Fuse

Product Code: AGDC2.5

  • Slow blow glass fuse for delayed response
  • Suitable for 250 VAC applications
  • Compact size: 5 mm x 20 mm
  • Clip mounting for easy installation
  • Handles up to 35 A interrupt rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Miniature Fuse Link
Brand
IPD
Series
AGDC
Application
Electronic Circuits

Electrical

Breaking Capacity
35kA at 250V AC
Rated Current (In)
2.5A
Rated Voltage (Ur)
250V AC
Speed Class
Time Delay

Mechanical

Body Style
Cylindrical Tube
Material
Body: glass, End cap: nickel-plated brass

Dimensions & Physical Data

Length
20mm
Weight
0.00083kg
Width
Ø 5mm

Safety, Standards & Compliance

Standards and Approvals
CE Marked, ROHS Compliant, CCC Marked

Documents

IPD Product Catalogue V17
