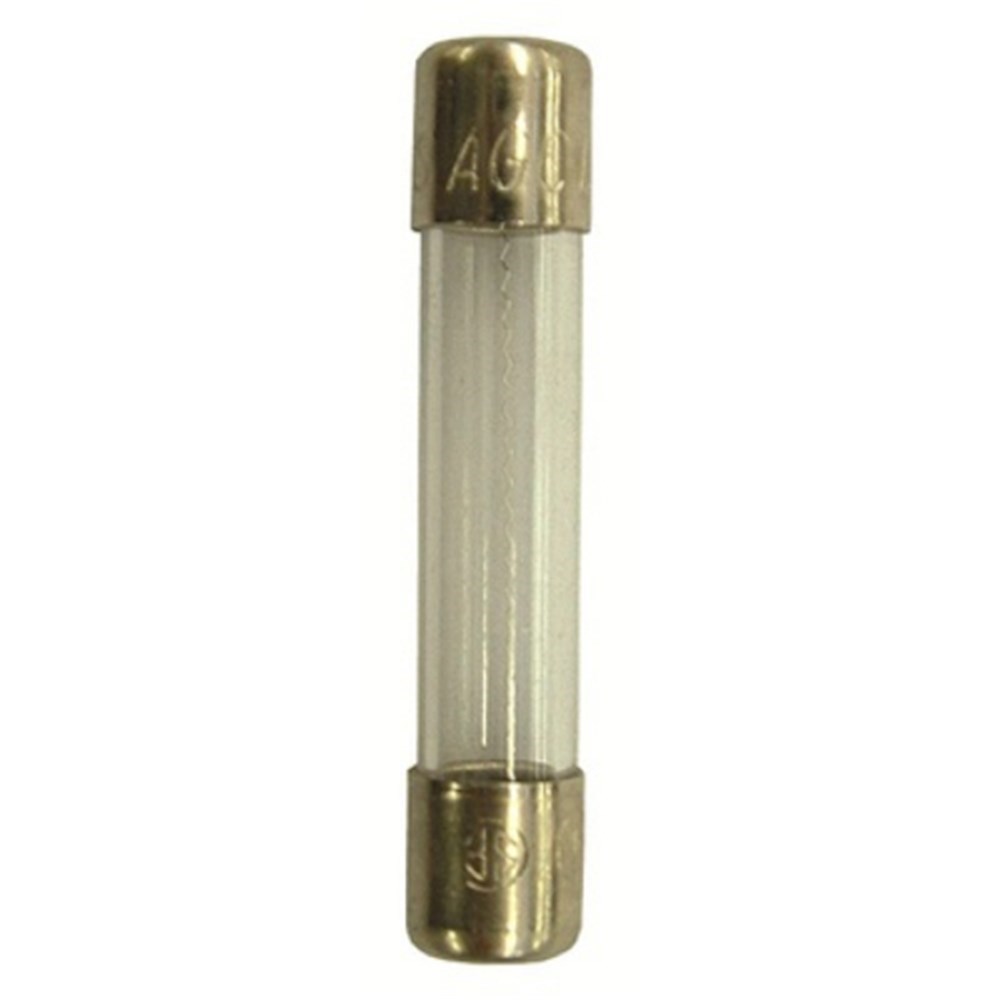

IPD AGDB400MA Miniature Fuse Link 0.4A 250VAC Fast Acting Glass M205 Fuse 5mmDiax20mm L 35A Interrupt

Product Code: AGDB400MA

  • Fast acting glass fuse, M205 type
  • Rated for 0.4 A and 250 VAC
  • Compact size: 5mm diameter, 20mm length
  • Interrupt rating of 35 A
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Miniature Fuse Link
Brand
IPD
Series
AGDB
Application
Electronic Circuits

Electrical

Breaking Capacity
35kA at 250V AC
Rated Current (In)
0.4A
Rated Voltage (Ur)
250V AC
Speed Class
Fast-Acting

Mechanical

Body Style
Cylindrical Tube
Material
Body: glass, End cap: nickel-plated brass

Dimensions & Physical Data

Length
20mm
Weight
0.00083kg
Width
Ø 5mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60127-2/2, CE Marked, ROHS Compliant, CCC Marked

Documents

IPD Product Catalogue V17
