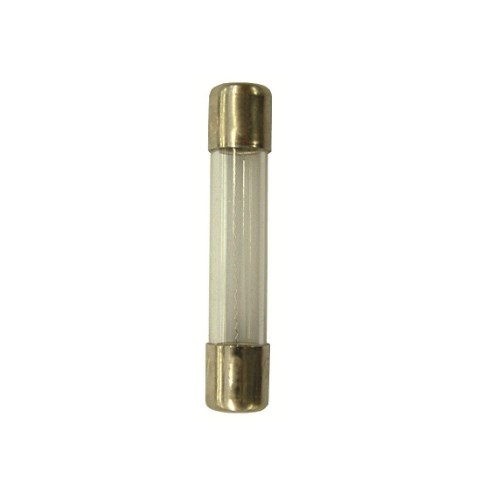

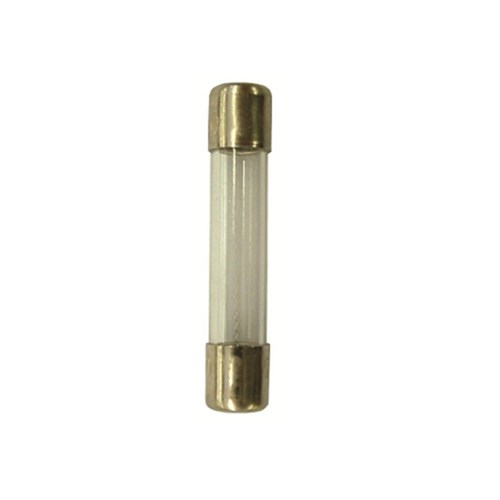

IPD AGDB2 Miniature Fuse Link 2A 250VAC Fast Acting Glass M205 Fuse 5mm Dia x 20mm L 35A Interrupt Glass Fast Acting

Product Code: AGDB2

  • Fast acting glass fuse for quick response
  • Rated for 2A at 250VAC
  • Compact size: 5mm diameter, 20mm length
  • Interrupt rating of 35A for enhanced safety
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Miniature Fuse Link
Brand
IPD
Series
AGDB
Application
Electronic Circuits

Electrical

Breaking Capacity
35 kA at 250 V AC
Rated Current (In)
0.083333
Rated Voltage (Ur)
250 V AC
Speed Class
Fast-Acting

Mechanical

Body Style
Cylindrical Tube
Material
Body: glass, End cap: nickel-plated brass

Dimensions & Physical Data

Length
20 mm
Weight
0.83 g
Width
Ø 5 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60127-2/2,CE Marked, ROHS Compliant, CCC Marked

Documents

IPD Product Catalogue V17
