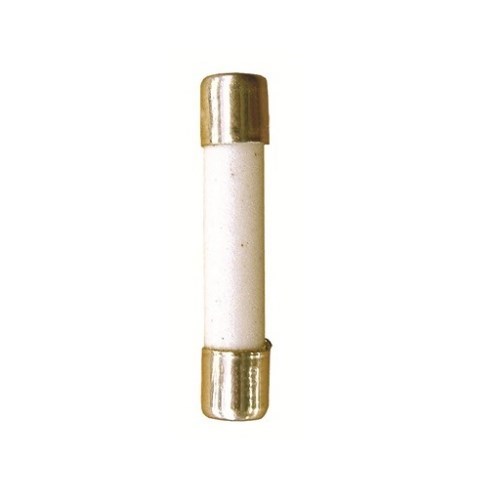

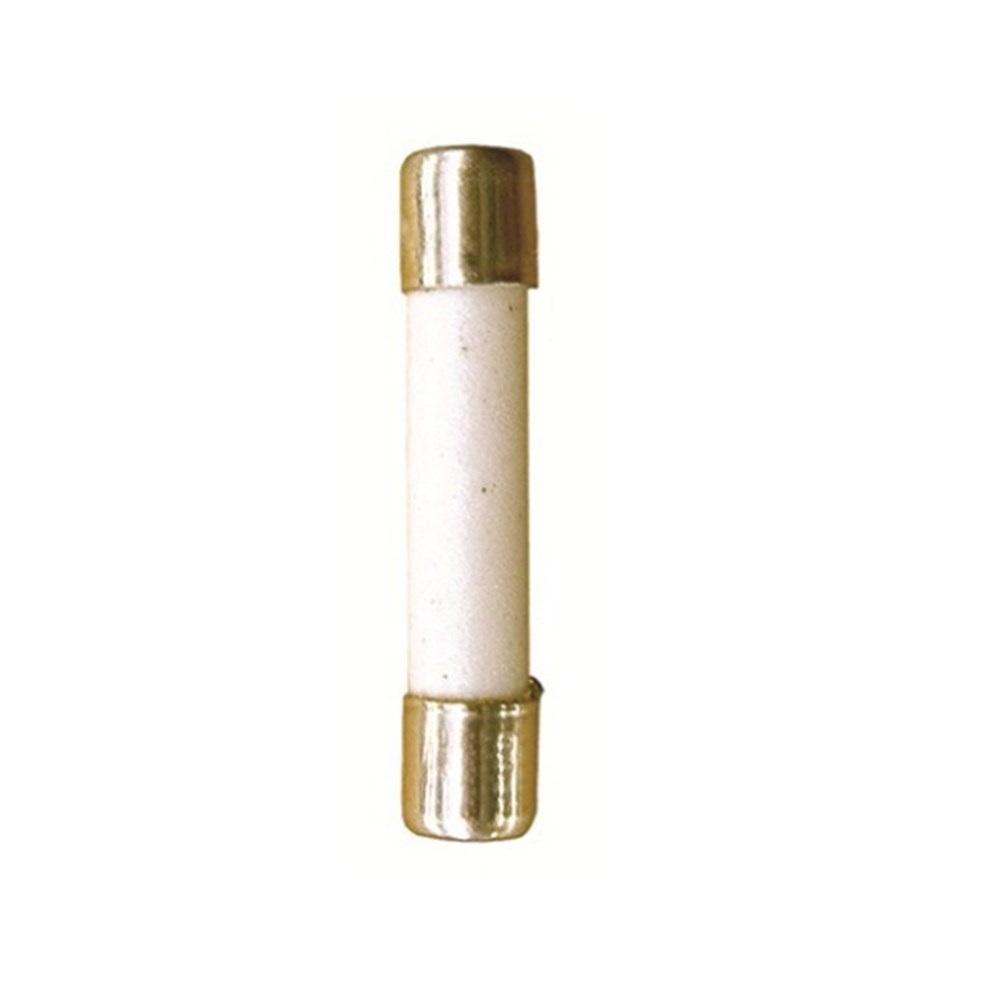

IPD AGDA100MA Miniature Fuse Link 0.1A 250VAC M205 Fuse 5mm Dia x 20mm L 1500A Interrupt Ceramic Fast Acting

Product Code: AGDA100MA

  • Miniature design, 5mm dia x 20mm L
  • Rated at 0.1 A, suitable for low current applications
  • Handles up to 250 VAC efficiently
  • Durable ceramic construction
  • High interrupt rating of 1500 A
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Miniature Fuse Link
Brand
IPD
Series
AGDA

Electrical

Rated Current (In)
0.1A
Rated Voltage (Ur)
250V AC
Speed Class
Fast-Acting

Mechanical

Body Style
Cylindrical Tube
Material
Body: Ceramic tube with silver-plated, End caps: nickel-plated
Fuse Holder
ATB34M

Dimensions & Physical Data

Length
20mm
Width
Ø 5mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60127-2

Documents

IPD Product Catalogue V17
