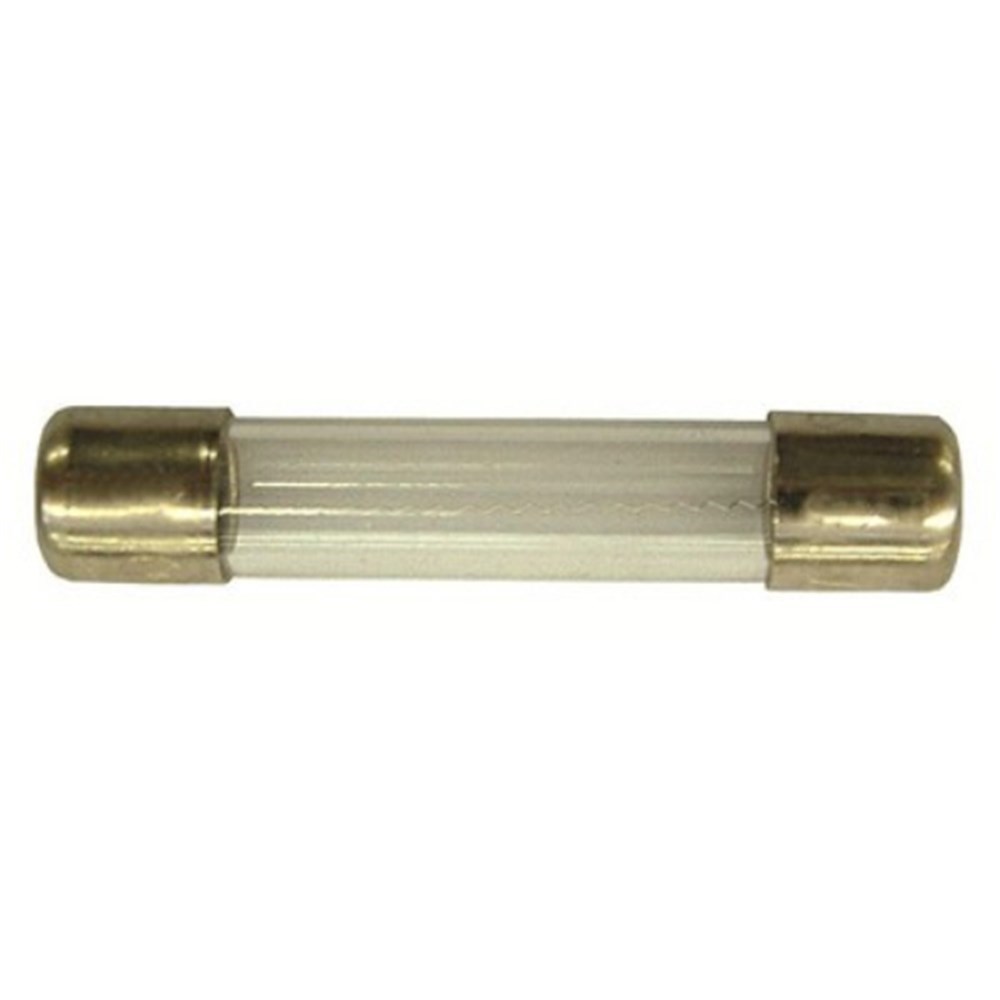

IPD AAGC7 Miniature Fuse Link 7A 250VAC Fast Acting Glass 3AG Fuse 6.3mmDiax32mm L 200-10000A Interrupt

Product Code: AAGC7

  • Fast acting 3AG glass fuse
  • Rated for 7A, 250VAC
  • Compact size: 6.3mm x 32mm
  • Interrupt rating: 200-10000A
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Miniature Fuse Link
Brand
IPD
Series
AAGC
Application
Primary circuit protection (power supplies, battery chargers, consumer electronics, test equipment, monitors)

Electrical

Rated Current (In)
0.291667
Rated Voltage (Ur)
250 V AC/ 32 V DC
Speed Class
Fast-Acting

Mechanical

Body Style
Cylindrical Tube
Material
Body: glass, End cap: nickel-plated brass
Size Code
3AG
Connection/Termination
Flush ends
Fuse Holder
ATB34I

Dimensions & Physical Data

Length
32 mm
Weight
0.002 kg (Approx.)
Width
Ø 6.3 mm

Safety, Standards & Compliance

Standards and Approvals
CE Marked, ROHS Compliant

Documents

IPD Product Catalogue V17
