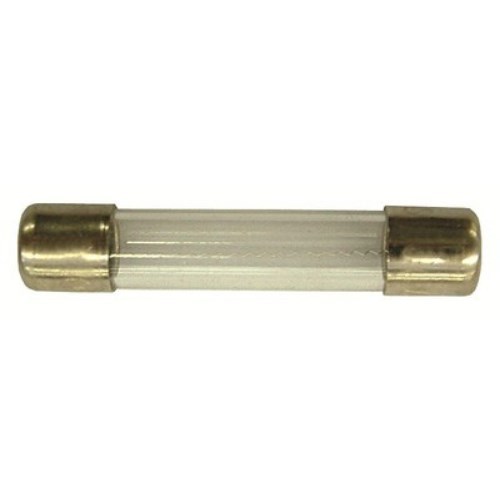

IPD AAGC25 Miniature Fuse Link 25A 32VAC Fast Acting Glass 3AG Fuse 6.3mm Dia x 32mm L Glass Fast Acting

Product Code: AAGC25

  • Miniature fast acting glass fuse
  • Rated for 25 A and 32 VAC
  • Compact size: 6.3 mm dia x 32 mm L
  • Durable glass construction
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Miniature Fuse Link
Brand
IPD
Series
AAGC
Application
Primary circuit protection (power supplies, battery chargers, consumer electronics, test equipment, monitors)

Electrical

Rated Current (In)
25A
Rated Voltage (Ur)
250V AC/ 32V DC
Speed Class
Fast-Acting

Mechanical

Body Style
Cylindrical Tube
Material
Body: glass, End cap: nickel-plated brass
Size Code
3AG
Connection/Termination
Flush ends
Fuse Holder
ATB34I

Dimensions & Physical Data

Length
32mm
Weight
0.002kg (Approx.)
Width
Ø 6.3mm

Safety, Standards & Compliance

Standards and Approvals
CE Marked, ROHS Compliant

Documents

IPD Product Catalogue V17
