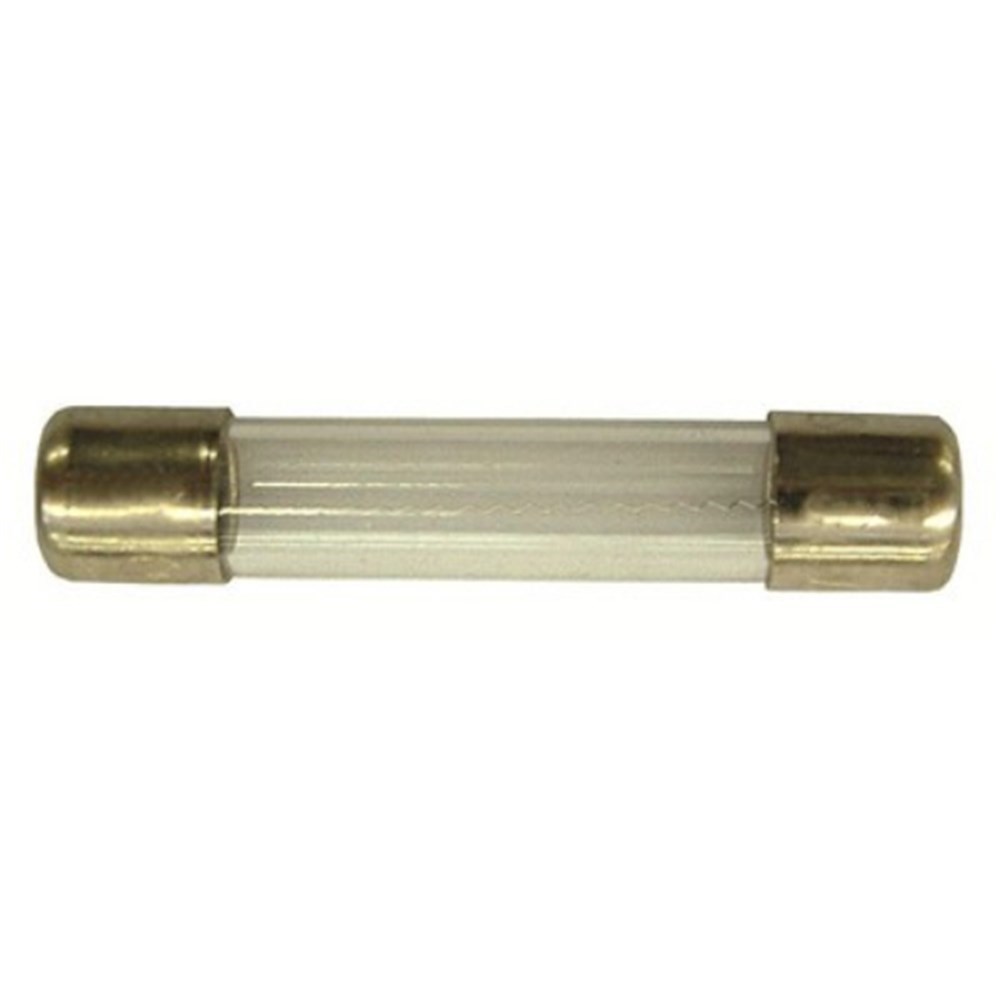

IPD AAGC1.5 Miniature Fuse Link 1.5A 250VAC Fast Acting Glass 3AG Fuse 6.3mmDiax32mm L 100-10000A Interrupt

Product Code: AAGC1.5

  • Fast acting glass fuse for quick response
  • 1.5 A current rating, suitable for small circuits
  • Rated for up to 250 VAC applications
  • Compact size: 6.3 mm diameter x 32 mm length
  • High interrupt rating of 100-10000 A
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Miniature Fuse Link
Brand
IPD
Series
AAGC
Application
Primary circuit protection (power supplies, battery chargers, consumer electronics, test equipment, monitors)

Electrical

Rated Current (In)
1.5A
Rated Voltage (Ur)
250V AC/ 32V DC
Speed Class
Fast-Acting

Mechanical

Body Style
Cylindrical Tube
Material
Body: glass, End cap: nickel-plated brass
Size Code
3AG
Connection/Termination
Flush ends
Fuse Holder
ATB34I

Dimensions & Physical Data

Length
32mm
Weight
0.002kg (Approx.)
Width
Ø 6.3mm

Safety, Standards & Compliance

Standards and Approvals
CE Marked, ROHS Compliant

Documents

IPD Product Catalogue V17
