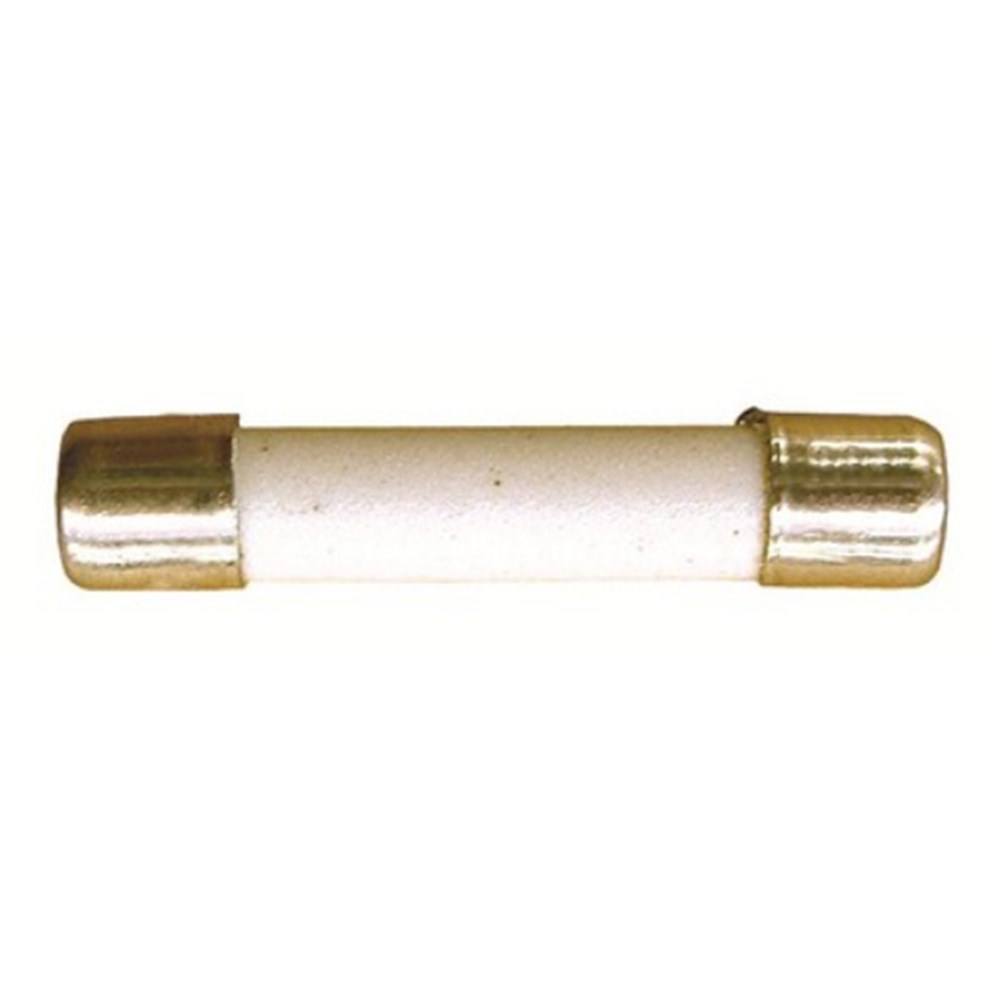

IPD AABC750MA Miniature Fuse Link 0.75A 250VAC 3AG Fuse 6.3mm Dia x 32mm L 35-10000A Interrupt Ceramic Fast Acting

Product Code: AABC750MA

  • Compact 6.3mm x 32mm ceramic body
  • Rated for 0.75A at 250VAC
  • Versatile 3AG fuse type
  • High interrupt rating: 35-10000A
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Miniature Fuse Link
Brand
IPD
Series
AABC
Application
Primary circuit protection (power supplies, battery chargers, consumer electronics, test equipment, monitors)

Electrical

Breaking Capacity
35kA at 250V AC
Rated Current (In)
0.75A
Rated Voltage (Ur)
250V AC / 125V DC
Speed Class
Fast-Acting

Mechanical

Body Style
Cylindrical Tube
Material
Body: ceramic, End cap: nickel-plated brass
Size Code
3AG
Connection/Termination
Flush ends
Fuse Holder
ATB34I

Dimensions & Physical Data

Length
31.75mm
Weight
0.002kg (Approx.)
Width
Ø 6.35mm

Safety, Standards & Compliance

Standards and Approvals
CSA Certified – Class No: 1422-01 & 1422-30 (File 53787)

Documents

IPD Product Catalogue V17
