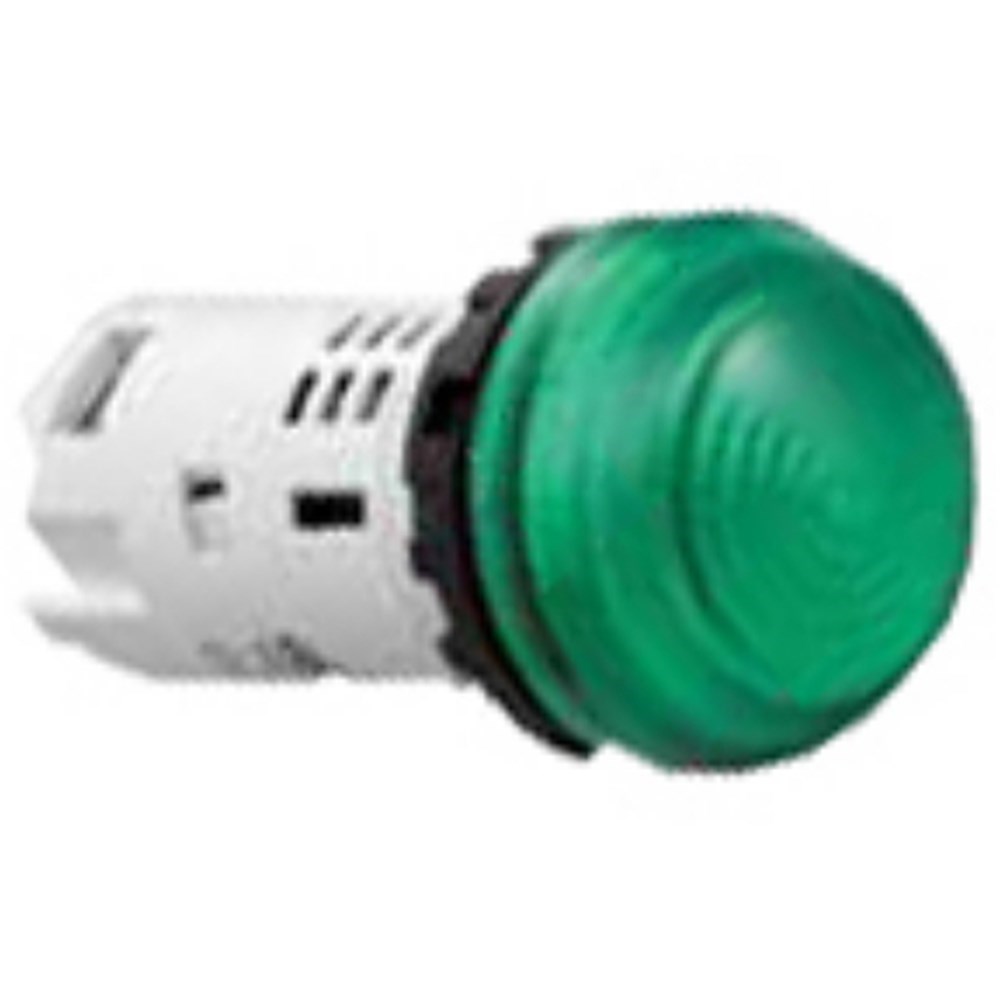

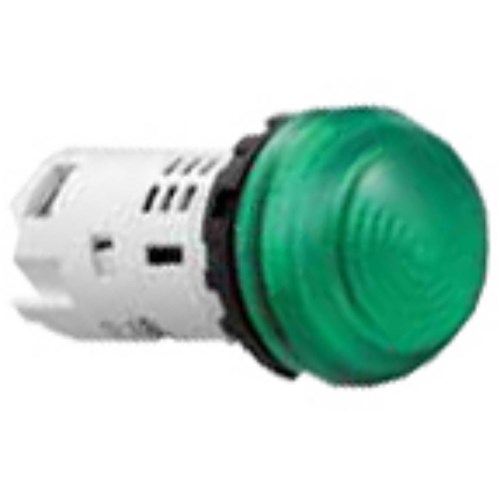

IDEC YW1P-2UQM3PW YW Series Pilot Lightwith Intergrated white LED 230-240V AC/DC

Product Code: YW1P-2UQM3PW

  • Operates at 24 VDC
  • Suitable for -20 to 55°C environments
  • IP65 protection rating
  • Fits 22 mm mounting holes
  • Pure white LED lamp
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pilot Light
Brand
IDEC
Series
YW

Electrical

Rated Current (In)
0.002A
Rated Voltage (Ur)
230V to 240V AC/DC
Terminal Type
Screw Terminals

Mechanical

Lamp Colour
White
Lens Colour
Pure White
Lens Shape
Dome Full Voltage

Environmental

IP Rating
From panel front: IP65 (IEC 60529), Terminal: IP20 (IEC 60529)

Documents

IPD Product Catalogue V17
