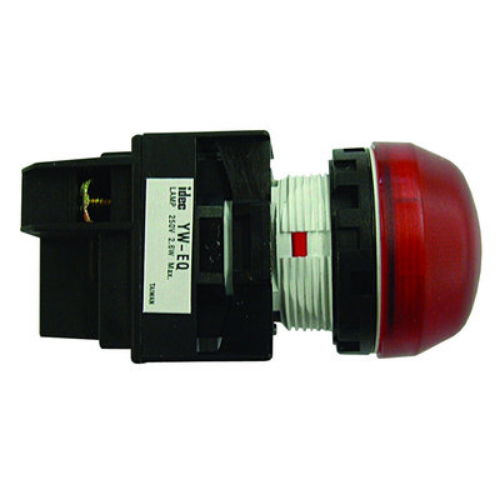

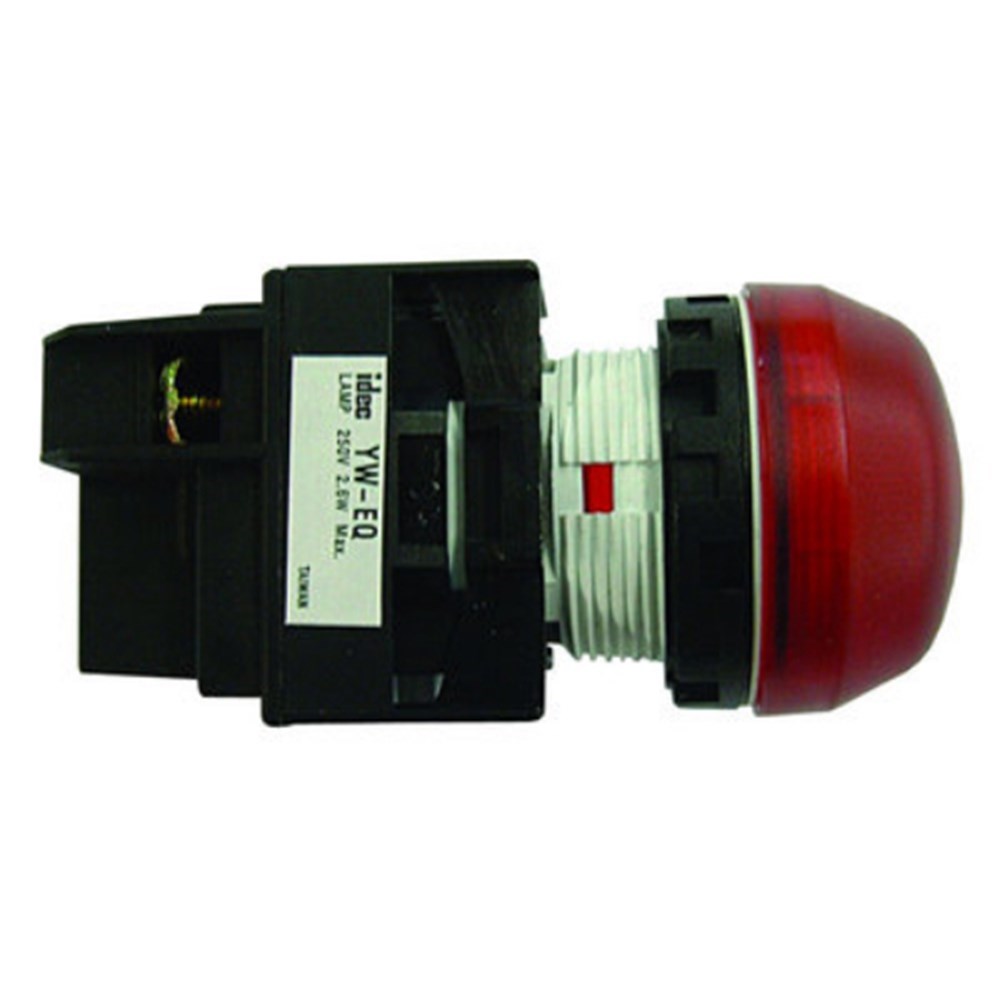

IDEC YW1P-2EQ0A YW Series Pilot Lightwith Intergrated white LED 250V AC/DC max

Product Code: YW1P-2EQ0A

  • Compact size: 9.6mm W x 39.9mm H x 48mm D
  • Wide temp range: -30 to 70°C operational
  • Screw clamp for secure connections
  • Rated insulation voltage up to 690V
  • IP20 protection against solid objects
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pilot Light
Brand
IDEC
Series
YW

Electrical

Rated Current (In)
0.003A
Rated Voltage (Ur)
250V AC/DC max
Terminal Type
Screw Terminals

Mechanical

Lamp Colour
White
Lens Colour
Amber
Lens Shape
Dome

Environmental

IP Rating
From panel front: IP65 (IEC 60529), Terminal: IP20 (IEC 60529)
