Specifications

Product Type

Emergency Stop Switch

Brand

IDEC

Series

No. of N/C Contacts 1	No. of N/O Contacts 1	Illumination Illuminated
Rated Current (In) AC-12: (380 V) 2 A, (240 V) 6 A, (120 V) 10 A, 24 V 10 AAC-15: (380 V) 1.9 A, (240 V) 3 A, (120 V) 6 A, 24 V 10 ADC-12: (24 V) 8 A, (120 V) 2.2 A, (240 V) 1.1 ADC-13: (24 V) 4 A, (120 V) 1.1 A, (240 V) 0.55 A	Rated Voltage (Ur) 110 VAC/DC	Terminal Type Screw terminals
Rated Thermal Current (Ith) 0.4166666667

Pushbutton Colour Red	Pushbutton Material Plastic	Pushbutton Type Mushroom
Unlocking Method Twist Release / Pull Release

Button Diameter (mm)

40 mm

IP Rating

IP65

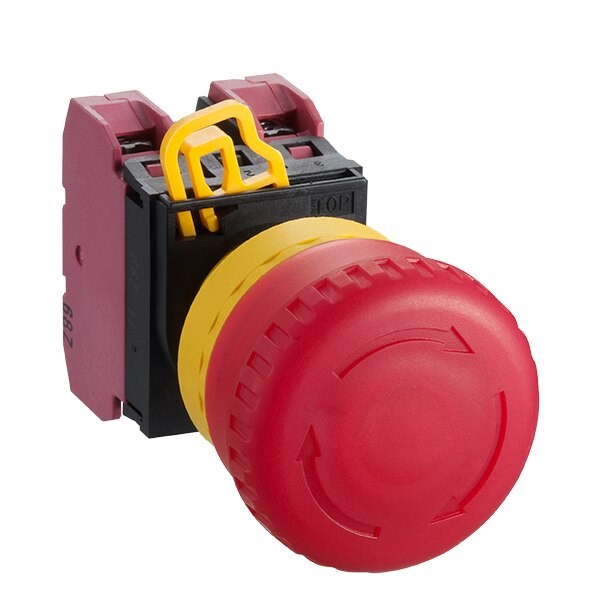

IDEC YW1L-V4E11QHR YW Emergency-Stop Switches 40 mm 1NO+1NC
