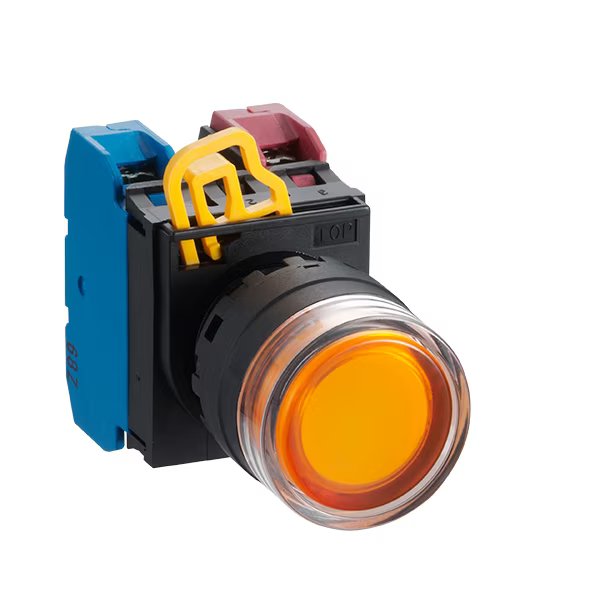

IDEC YW1L-MF2E10QHA Illuminated Pushbutton 1NO+0NC

Product Code: YW1L-MF2E10QHA

  • Illuminated pushbutton with amber LED
  • Durable: 5M operations single, 1M double contact
  • IP65 front protection for harsh environments
  • Extended actuator with full shroud design
  • cULus, CE, UKCA, CCC certified for compliance
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pushbutton
Brand
IDEC
Series
YW

Electrical

No. of N/C Contacts
0
No. of N/O Contacts
1
Terminal Type
Finger Safe Spring Terminal
Contact Block Thermal Current (Ith)
10:00 AM
Contact Block Rated Current (Ie)
AC-12: (380 V) 2 A, (240 V) 6 A, (120 V) 10 A, (24 V) 10 AAC-15: (380 V) 1.9 A, (240 V) 3 A, (120 V) 6 A, (24 V) 10 ADC-12: (24 V) 8 A, (120 V) 2.2 A, (240 V) 1.1 ADC-13: (24 V) 4 A, (120 V) 1.1 A, (240 V) 0.55 A

Mechanical

Actuator Type
Extended w/ shroud
Bezel Material
Plastic
Lamp Colour
Amber
Lens Colour
Amber
Switching Function
Momentary

Environmental

IP Rating
IP65

Documents

IPD Product Catalogue V17
