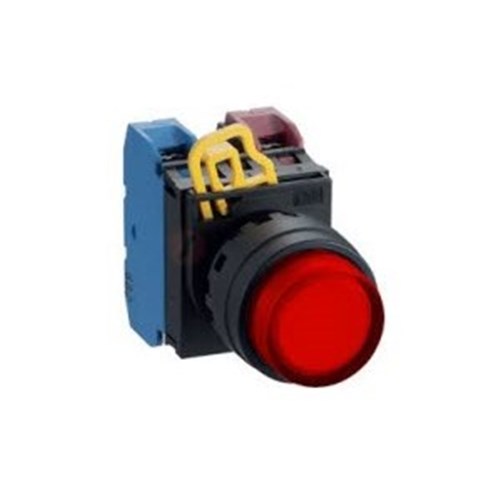

<p>The YW Series Pushbutton is designed for industrial and commercial applications, offering a reliable solution for your control panel needs. With its illuminated feature and momentary function, this pushbutton ensures clear visibility and precise operation in diverse environments.</p><p>Operating at a rated voltage of 24 VAC/DC, the pushbutton is suitable for various electrical systems. Its robust construction includes a plastic bezel material that houses an extended actuator type, ensuring durability over time. The contact configuration of 1NO+1NC provides both normally open and normally closed contacts, enhancing versatility in circuit design.</p><p>Measuring 30 mm in width, 41.4 mm in height, and 64.8 mm in depth, this compact device fits comfortably into standard cutouts with a diameter of 22 mm. It boasts an impressive mechanical life span with up to 5 million operations for single contact blocks and 1 million operations for double contact blocks.</p><p>Designed to withstand challenging conditions, the pushbutton operates efficiently within temperatures ranging from -20 to 55 degrees Celsius while being able to be stored safely between -40 to 85 degrees Celsius. Its operational reliability is further supported by a humidity tolerance of 45-85%.</p><p>The IP65 front degree of protection ensures resistance against dust ingress and low-pressure water jets from any direction—ideal for harsh industrial settings—while the IP20 terminal protection safeguards internal components during installation and maintenance.</p><p>Safety certifications including cULus listing, CE Marking, UKCA Certification, and CCC Certification underscore its compliance with international standards. Additionally, it features vibration resistance from frequencies between 5-55 Hz and shock resistance rated at 10 g/ms.</p><p>Electrical specifications include a rated insulation voltage of up to 600 V and insulation resistance measured at an impressive 100 MOhm. The screw terminal type facilitates secure connections while supporting a continuous current rating of up to 10 A.</p><p>For those requiring visual indication during operation or troubleshooting processes, the incandescent lamp emits a red glow when activated—a practical choice that aligns with industry norms for signaling caution or stop functions.</p><p>In summary, the YW Series Pushbutton combines functionality with resilience making it an excellent choice for professionals seeking dependable performance across various applications where precision control is paramount.</p>
